Lightweight Snatch Block

6 Ton to 15 Ton Working Load Limit

Plate Sided Series
  • New lightweight design with only 43.5 lbs for a 15 Ton block
  • Innovative lightweight hook combines a custom high strength alloy with a low profile design, creating a tremendous weight to strength ratio
  • Lightweight composite sheave is specifically designed for increased strength and durability
  • Corrosion resistant Electroless Nickel plating on sides, sheave pin, and attaching pin
  • Captured attaching pin allows convenient reeving while block is suspended
  • Custom sizes and WLLs available upon request
  • Skookum Gold Standard Forgings
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING SWIVEL HOOK# WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) SWIVEL HOOK WEIGHT SHEAVE #
6" 6T 6" BB 1007113 7/16 1/2 6.00 18.00 1007169
6" 10T 6" BB 1007112 5/8 3/4 10.00 27.00 1007163
8" 10T 8" BB 1007111 5/8 3/4 10.00 31.00 1007130
10" 15T 10" BB 1006391 3/4 7/8 15.00 65.00 1006575
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL) , Bearing Style and Attaching Style when ordering.
  • Ultimate load is four times the WLL.
  • Ton equals 2,000lbs.
DIMENSIONS
OVERALL HOOK HEIGHT OVERALL SHACKLE HEIGHT OVERALL TAILBOARD HEIGHT OVERALL THICKNESS OVERALL WIDTH INSIDE THROAT WIDTH THROAT HEIGHT HOOK OPENING HOOK HEIGHT HOOK TOP HEIGHT HOOK TOP THICK SHACKLE HEIGHT
A NOT
SHOWN		 NOT
SHOWN		 D E F G H J K L NOT
SHOWN
16.44     4.25 6.25 1.91 1.77 1.38 5.59 1.46 1.18
19.50     4.25 6.25 1.91 1.89 2.09 7.76 2.36 1.69
21.50     4.25 8.25 1.91 1.96 2.09 7.76 2.36 1.69
25.17     4.44 10.25 1.97 2.04 2.10 8.64 2.64 2.05
  • Please contact us for any custom product or non-standard sizes.


Alloy Snatch Blocks

4 Ton to 20 Ton Working Load Limit

Plate Sided Series
  • Forged alloy hooks and shackles heat treated for toughness
  • Interchangeble hook and shackle connector options
  • Available with bronze bushing, composite bushing or roller bearing
  • Captured attaching pin allows convient reeving while block is suspended
  • Larger sheaves and WLL available upon request
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING TAILBOARD SWIVEL HOOK# SWIVEL SHACKLE/EYE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) TAILBOARD WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT SHEAVE #
4"4T 4" BB 1000135 1000136 1000137 1/4 3/8 4.00 6.30 8.30 9.35 571901
6"8T 6" BB 1000141 1000142 1000143 5/8 3/4 8.00 15.75 27.15 23.40 1003066
8"8T 8" BB 1000144 1000145 1000146 5/8 3/4 8.00 23.60 34.60 31.05 1002924
8"15T 8" BB 1000187 1000700 1000703 3/4 7/8 15.00 29.50 55.85 49.85 1000246
8"20T 8" BB 1000710 1000711 1000712 1 1 1/8 20.00 51.85 99.55 88.00 1000722
10"8T 10" BB 1000150 1000151 1000152 5/8 3/4 8.00 35.25 46.80 42.90 1003103
10"15T 10" BB 1000340 1000341 1000342 3/4 7/8 15.00 38.45 65.00 60.35 1003115
10"20T 10" BB 1000807 1000808 1000809 1 1 1/8 20.00 69.85 120.00 106.00 1003129
  • Tailboard does not include captured attaching pin.
  • Please specify Part Number,Sheave Size, Working Load Limit(WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load is four times the WLL.
  • Ton equals 2,000lbs.
DIMENSIONS
OVERALL HOOK HEIGHT OVERALL SHACKLE HEIGHT OVERALL TAILBOARD HEIGHT OVERALL THICKNESS OVERALL WIDTH INSIDE THROAT WIDTH THROAT WIDTH HOOK OPENING HOOK HEIGHT HOOK TOP HEIGHT HOOK TOP THICK SHACKLE HEIGHT
A NOT
SHOWN		 NOT
SHOWN		 D E F G H J K L NOT
SHOWN
13.60 12.75 6.91 3.30 4.06 1.50 1.00 1.35 5.20 1.50 1.13 5.22
18.65 16.46 9.94 4.25 6.00 1.91 1.21 1.70 6.33 2.38 1.50 5.65
20.65 18.46 11.94 4.25 8.00 1.91 1.21 1.70 6.33 2.38 1.50 5.65
23.85 23.13 12.50 4.43 8.25 1.97 1.13 2.77 8.71 2.64 2.02 9.38
26.73 25.69 13.81 6.19 8.13 2.56 1.26 3.51 9.75 3.15 2.52 10.38
22.65 20.46 13.94 4.25 10.00 1.91 1.21 1.70 6.33 2.38 1.50 5.65
25.85 25.13 14.50 4.43 10.25 1.97 1.13 2.77 8.71 2.64 2.02 9.38
28.73 27.69 15.81 6.19 10.13 2.56 1.26 3.51 9.75 3.15 2.52 10.38
  • Please contact us for any custom product or non-standard sizes.


Half-Sided Blocks

5 Ton to 12.5 Ton Working Load Limit

A Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Recessed sheave design prevents wire rope from binding between sheave and block side
  • Half side design for strength with minimized weight
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL HOOK PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT
A-4 4" BB 564000 564001 564002 1/4 3/8 5.00 9.25 — —
A-6 6" BB 564100 564101 564102 3/8 1/2 7.00 17.00 20.50 19.00
A-8 8" BB 564200 564201 564202 1/2 5/8 8.00 23.50 36.00 35.00
A-10 10" BB 564300 564301 564302 5/8 3/4 8.00 34.00 40.00 41.00
A-12 12" BB 658300 — — 3/4 7/8 13.50 53.40 — 58.65
A-4R 4" RB 563400 563401 563402 1/4 3/8 5.00 9.00 — —
A-6R 6.00 RB 563500 563501 563502 3/8 1/2 6.50 17.00 20.50 19.00
A-8R 8" RB 563600 563601 563602 1/2 5/8 6.50 23.55 35.00 35.00
A-10R 10" RB 563700 563701 563702 5/8 3/4 6.50 37.00 41.00 41.00
A-12R 12" RB 676400 — 676402 3/4 7/8 12.50 55.00 — 59.00
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS OVERALL WIDTH THROAT BOTTOM WIDTH INSIDE THROAT WIDTH INSIDE YOKE WIDTH THROAT HEIGHT YOKE BAR HEIGHT YOKE BAR WIDTH HOOK OPENING HOOK HEIGHT HOOK TOP HEIGHT HOOK TOP THICK SHACKLE HEIGHT
A B C D E NOT
SHOWN		 G NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 N P
7.75 3.50 4.50 1.13 1.13 1.43 3.88 0.88 0.75 1.13 3.25 1.00 1.13 3.50
10.50 4.00 6.50 0.88 1.50 1.13 4.50 1.06 1.25 1.25 3.63 1.60 1.25 4.50
14.50 4.00 9.00 1.00 1.75 1.50 5.00 1.13 1.38 1.50 4.19 1.88 1.37 5.00
16.50 4.00 11.00 1.00 1.38 1.50 6.00 1.13 1.38 1.50 4.19 1.88 1.37 5.00
19.75 6.25 12.50 1.25 1.75 1.75 7.25 1.44 1.38 — — — — 5.50
7.75 3.50 4.50 1.13 1.13 1.43 3.88 0.88 0.75 1.13 3.25 1.00 1.13 3.50
10.50 4.00 6.50 0.88 1.50 1.13 4.50 1.06 1.25 1.25 3.63 1.60 1.25 4.50
14.50 4.00 9.00 1.00 1.75 1.50 5.00 1.13 1.38 1.50 4.19 1.88 1.37 5.00
16.50 4.00 11.00 1.00 1.38 1.50 6.00 1.13 1.38 1.50 4.19 1.88 1.37 5.00
19.75 6.25 12.50 1.25 1.75 1.75 7.25 1.44 1.38 — — — — 5.50
  • Please contact us for any custom product or non-standard sizes.


Full-Sided Blocks

5 Ton to 13.5 Ton Working Load Limit

A Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Recessed sheave design prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL# SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL HOOK PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT
A-4T 4" BB 666400 666401 666402 1/4 3/8 5.00 13.00 16.25 16.25
A-6T 6" BB 679700 679701 679702 3/8 1/2 7.00 20.00 24.00 22.00
A-8T 8" BB 680000 680001 680002 1/2 5/8 8.00 31.00 38.00 37.00
A-10T 10" BB 564400 564401 564402 5/8 3/4 8.00 37.00 43.00 44.00
A-12T 12" BB 564500 — 564502 3/4 7/8 13.50 60.00 — 68.00
A-4RT 4" RB 680300 680301 680302 1/4 3/8 5.00 13.00 16.25 16.25
A-6RT 6" RB 680600 680601 680602 3/8 1/2 6.50 20.00 24.00 22.00
A-8RT 8" RB 680900 680901 680902 1/2 5/8 6.50 31.00 38.00 37.00
A-10RT 10" RB 563800 563801 563802 5/8 3/4 6.50 40.00 44.00 44.00
A-12RT 12" RB 571100 — 571102 3/4 7/8 12.50 60.00 — 64.00
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Please contact us for any custom product or non-standard sizes.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM WIDTH INSIDE THROAT WIDTH INSIDE YOKE WIDTH THROAT HEIGHT YOKE BAR HEIGHT YOKE BAR WIDTH HOOK OPENING HOOK HEIGHT HOOK HEIGHT TOP HOOK TOP THICK SHACKLE HEIGHT
A B C D E F G H J NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN
9.63 3.50 4.50 1.13 1.50 1.43 3.50 0.88 0.75 1.13 3.25 1.00 1.13 3.50
12.00 4.00 6.50 0.88 1.50 1.13 4.50 1.06 1.25 1.25 3.63 1.60 1.25 4.50
16.38 4.00 8.63 1.00 1.50 1.50 5.75 1.13 1.38 1.38 4.16 1.88 1.37 5.00
18.50 4.00 11.00 1.00 1.50 1.50 6.00 1.13 1.38 1.38 4.19 1.88 1.37 5.00
21.00 6.25 12.50 1.00 1.75 1.75 7.25 1.44 1.38 — — — — 5.50
9.63 3.50 4.50 1.13 1.50 1.43 3.50 0.88 0.75 1.13 3.25 1.00 1.13 3.50
12.00 4.00 6.50 0.88 1.50 1.13 4.50 1.06 1.25 1.25 3.63 1.60 1.25 4.50
16.38 4.00 8.63 1.00 1.50 1.50 5.75 1.13 1.38 1.38 4.19 1.88 1.37 5.00
18.50 4.00 11.00 1.00 1.50 1.50 6.00 1.13 1.38 1.38 4.19 1.88 1.37 5.00
21.00 6.25 12.50 1.00 1.75 1.75 7.25 1.44 1.38 — — — — 5.50
  • Please contact us for any custom product or non-standard sizes.


Snatch Lock Full-Sided Blocks

3 Ton to 6.5 Ton Working Load Limit

S Series
  • Unique Snatch Lock designed for fast, tool-less reeving
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Recessed sheave design prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING SWIVEL HOOK PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT SHEAVE # DRAW PIN
S-4 4" BB 749501 749502 3/8 1/2 3.00 11.00 11.00 571901 551401
S-6 6" BB 563001 563002 3/8 1/2 6.50 26.00 26.00 574001 551413
S-8 8" BB 563101 563102 1/2 5/8 7.00 32.00 32.00 574201 551413
S-10 10" BB 563301 563302 5/8 3/4 7.00 44.00 44.00 574401 551413
S-4R 4" RB 749601 749602 3/8 1/2 3.00 11.00 11.00 571902 551401
S-6R 6" TRB 562601 562602 3/8 1/2 6.50 26.00 26.00 574005 551413
S-8R 8" TRB 562701 562702 1/2 5/8 6.50 32.00 32.00 574405 551413
S-10R 10" TRB 562901 562902 5/8 3/4 6.50 44.00 44.00 574405 551413
  • Tailboard does not include captured attaching pin.
  • Please specify Part Number,Sheave Size, Working Load Limit(WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load is four times the WLL.
  • Ton equals 2,000lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH THROAT HEIGHT HOOK OPENING HOOK HEIGHT HOOK THICKNESS SHACKLE HEIGHT
A B C D E F G H J NOT
SHOWN
12.00 3.50 4.50 1.13 1.25 2.88 1.25 2.88 1.19 0.75
16.75 4.00 7.00 1.00 1.88 2.50 1.88 4.00 1.63 0.88
20.00 4.00 9.00 1.13 1.88 2.50 1.88 4.75 1.63 1.00
22.00 4.00 11.00 1.13 2.00 2.50 2.00 4.75 1.75 1.00
12.00 3.50 4.50 1.13 1.25 2.88 1.25 2.88 1.19 0.75
16.75 4.00 7.00 1.00 1.88 2.50 1.88 4.00 1.63 0.88
20.00 4.00 9.00 1.13 1.88 2.50 1.88 4.75 1.63 1.00
22.00 4.00 11.00 1.13 2.00 2.50 2.00 4.75 1.75 1.00
  • Please contact us for any custom product or non-standard sizes.


Utili-Sheave Full-Sided Blocks

5 Ton to 9 Ton Working Load Limit

R Series
  • Multi-use wide throat and Utili-Sheave for passing a variety of line, connecting links and terminations
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • R-6, R-8 & R-10 equipped with tapered roller bearings for long life in higher line speed applications
  • R-4 feature straight roller bearings to minimize size
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SHEAVE # DRAW PIN
R4 4" RB 565303 3/8 3/8 5.00 11.45 571904 551401
R6 6" TRB 551100 3/8 1/2 8.00 30 574803 551413
R8 8" TRB 557700 1/2 5/8 8.00 43 799203 551420
R10 10" TRB 557800 1/2 5/8 9.00 50 539703 551420
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), and Attaching Style when ordering.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH THROAT HEIGHT YOKE BAR HEIGHT YOKE BAR WIDTH
A B C D E G H J
10.00 1.75 4.75 1.00 2.50 5.25 1.00 1.00
14.50 8.00 6.75 2.50 4.50 6.50 1.25 1.25
17.00 8.50 8.75 2.50 4.75 7.25 1.38 1.38
19.50 8.00 10.50 3.50 4.75 7.25 1.38 1.38
  • Please contact us for any custom product or non-standard sizes.


Wide Throat & Utili-Sheave Blocks

7 Ton to 25 Ton Working Load Limit

Extended R Series
  • Multi-use wide throat and Utili-Sheave for passing a variety of line, connecting links and terminations
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • R-6, R-8 & R-10 equipped with tapered roller bearings for long life in higher line speed applications
  • R-4 feature straight roller bearings to minimize size
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL HOOK PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT SHEAVE # DRAW PIN
TR-6A 6" TRB 571600 — 571602 3/8 1/2 7.00 27.00 — 30.95 538903 551410
808 8" TRB 799400 799401 799402 1/2 5/8 10.00 32.00 36.00 36.00 799203 551420
508 8" TRB 209800 — — 1 1 1/8 15.00 72.00 — — 226203 551468
TM-10 10" TRB 108500 — — 1 1/4 1 1/2 25.00 110.00 — — 108526 108512
TMS-10 10" TRB 108510 — — 1 1/4 1 1/2 25.00 110.00 — — 108526 108512
2216WA 16" TRB 560300 — — 1 1/8 1 1/4 25.00 285.00 — — 101983 620801WA
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH INSIDE YOKE WIDTH THROAT HEIGHT YOKE BAR HEIGHT YOKE BAR WIDTH
A B C D E F G H J
13.00 6.00 7.00 1.00 3.00 3.00 5.25 1.00 1.00
17.00 6.50 8.75 2.63 2.63 2.63 3.75 1.38 1.38
15.00 11.00 9.50 4.00 4.00 5.25 6.50 2.00 2.00
20.00 12.00 11.50 4.50 4.50 6.00 9.00 2.00 2.00
20.00 12.00 11.50 4.50 4.50 6.00 9.00 2.00 2.00
30.50 13.63 16.50 6.75 9.50 9.50 15.00 2.38 2.38
  • Please contact us for any custom product or non-standard sizes.


Half-Sided Blocks

12.5 Ton to 17.5 Ton Working Load Limit

400-Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Equipped with tapered roller bearings for long life in higher line speed applications
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Half side for light weight or full sided block maximize sheave protection
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL SHACKLE WEIGHT SHEAVE # DRAW PIN
HALF SIDED BLOCK
410-A 10" TRB 553303 553302 5/8 3/4 12.50 48.00 55.00 536703 551422
412-A 12" TRB 558203 558202 3/4 7/8 17.50 72.00 81.15 537103 555501
414-A 14" TRB 558303 558302 3/4 7/8 17.50 95.75 104.90 537303 555501
416-A 16" TRB 558403 558402 3/4 7/8 17.50 97.00 106.15 537503 555501
418-A 18" TRB 558503 558502 7/8 1 17.50 108.00 117.15 537703 555501
FULL SIDED BLOCKS
414-T 14" TRB 573403 573402 7/8 1 17.50 97.00 106.15 537303 555501
416-T 16" TRB 573503 573502 3/4 7/8 17.50 107.00 116.15 537503 555501
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH INSIDE YOKE WIDTH YOKE WIDTH ABOVE YOKE WIDTH BELOW THROAT HEIGHT BELOW THROAT HEIGHT ABOVE YOKE BAR TOP HEIGHT YOKE BAR WIDTH
A B C D E NOT
SHOWN		 G NOT
SHOWN		 J K L M
HALF SIDED BLOCK
18.50 5.50 11.00 1.75 2.75 1.75 2.75 2.75 4.50 2.50 1.50 1.25
21.00 6.25 12.50 2.00 3.00 2.38 3.00 3.00 4.75 2.50 1.75 1.63
23.00 6.25 15.00 2.00 3.00 3.38 3.00 3.00 4.75 2.50 1.75 1.63
25.00 6.25 17.00 2.00 3.00 2.38 3.00 3.00 4.75 2.50 1.75 1.63
27.00 6.25 19.00 2.00 3.00 2.38 3.00 3.00 4.75 2.50 1.75 1.63
FULL SIDED BLOCKS
25.00 6.25 15.00 2.00 3.00 2.38 3.00 3.00 4.75 2.50 1.75 1.63
27.00 6.25 17.00 2.00 3.00 2.38 3.00 3.00 4.75 2.50 1.75 1.63
  • Please contact us for any custom product or non-standard sizes.


Half-Sided Blocks

8 Ton to 17.5 Ton Working Load Limit

T Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Half side for light weight or full side design to maximize sheave protection
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL HOOK PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT SHEAVE # DRAW PIN
T-8 8" TRB 557903 557901 557902 1/2 5/8 8.00 32.00 36.00 37.25 539103 551420
T-10S 10" TRB 558003 558001 558002 5/8 3/4 8.00 52.00 56.00 57.25 539903 551420
1010 10" TRB 553703 — 553702 7/8 1 17.50 75.00 — 87.00 537903 555501
510 10" BB 565003 — 565002 7/8 1 17.50 70.00 — 82.00 574301 555501
512 12" BB 565103 — 565102 7/8 1 17.50 80.00 — 97.95 574501 555501
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH INSIDE YOKE WIDTH YOKE WIDTH ABOVE YOKE WIDTH BELOW THROAT HEIGHT BELOW THROAT HEIGHT ABOVE YOKE BAR HEIGHT YOKE BAR WIDTH
A B C D E NOT
SHOWN		 G NOT
SHOWN		 J K L M
16.00 5.50 8.75 1.00 2.00 1.63 1.38 2.00 4.25 2.50 1.38 1.31
18.00 5.50 10.75 1.38 2.25 1.63 1.63 2.25 4.25 2.50 1.50 1.31
19.00 6.25 11.00 2.00 2.50 2.75 2.75 2.50 2.00 2.50 2.00 1.75
19.00 6.25 11.00 2.00 2.50 2.75 2.75 2.50 3.50 2.50 2.00 1.88
22.00 6.25 13.00 2.00 2.50 2.75 2.75 2.50 3.50 2.75 2.00 1.88
  • Please contact us for any custom product or non-standard sizes.


Half-Sided and Full-Sided Blocks

21.5 Ton to 30 Ton Working Load Limit

2200 Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Half side for light weight or full side design to maximize sheave protection
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL SHACKLE WEIGHT SHEAVE # DRAW PIN
HALF SIDED BLOCKS
2210A 10" TRB 555003 555002 7/8 1 21.50 83.00 102.00 536503 555501
2212 12" TRB 558603 558602 1 1/8 1 1/4 22.00 111.00 129.35 588703 555501
2214 14" TRB 558703 558702 1 1/8 1 1/4 22.00 130.00 148.35 536103 555501
2216B 16" TRB 558853 558852 1 1/8 1 1/4 25.00 150.00 — 535103 551455
2220 20" TRB 715003 715002 1 1 1/8 27.50 157.00 176.00 711102 555501
2222 22" TRB 711603 711602 1 1/8 1 1/4 29.00 223.00 241.35 540903 620801
FULL SIDED BLOCKS
2216HD 16" TRB 558804 — 1 1 1/8 30.00 235.00 — 535105 621901
2218HD 18" TRB 558904 — 1 3/8 — 30.00 275.00 — 535303 621901
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Utimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH YOKE WIDTH BELOW LINEGUARD YOKE WIDTH ABOVE LINEGUARD THROAT HEIGHT BELOW LINEGUARD THROAT HEIGHT ABOVE LINEGUARD YOKE BAR HEIGHT YOKE BAR WIDTH SHACKLE HEIGHT
A B C D E NOT
SHOWN		 G H J K L NOT
SHOWN
HALF SIDED BLOCKS
18.00 7.00 11.00 2.00 2.75 2.75 2.75 4.25 2.25 1.75 2.00 11.50
22.00 7.50 13.00 2.00 2.75 2.75 3.00 4.50 2.50 1.75 2.00 11.50
25.00 7.50 15.00 2.00 2.75 2.75 3.00 4.75 2.50 1.75 2.00 11.50
26.50 8.00 16.63 2.13 3.00 3.00 3.00 4.00 2.25 1.75 2.00 12.00
29.75 8.00 20.75 2.13 3.00 2.13 2.50 5.13 2.75 1.75 2.00 11.50
33.38 8.00 23.00 2.13 3.13 2.13 3.38 5.25 4.25 2.13 2.38 15.00
FULL SIDED BLOCKS
29.00 9.00 17.00 2.25 3.50 3.50 4.00 5.25 4.00 2.14 2.38 15.00
31.00 9.00 19.00 2.25 3.50 2.25 4.00 5.25 4.00 2.13 2.38 15.00
  • Please contact us for any custom product or non-standard sizes.


Full-Sided Blocks

13 Ton to 75 Ton Working Load Limit

300/2000/2600 Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SHEAVE # DRAW PIN
308 8" BB 790900 7/8 1 13.00 55.00 791101 551431
310 10" BB 791600 1 1/8 1 1/4 20.50 120.00 791801 551450
312 12" BB 792200 1 1/4 1 3/8 23.00 145.00 792401 551450
2014 14" BB 565700 1 1/2 1 5/8 36.50 250.00 541101 621102
2016 16" BB 565800 1 1/2 1 5/8 40.50 435.00 588801 621401
BML12 12" TRB 625000 1 1/8 1 1/4 27.50 150.00 960185 960189
2616 16" TRB 559400 1 1/2 1 5/8 50.00 600.00 575403 102960
2624 24" TRB 559500 1 1/2 1 5/8 75.00 850.00 262405 102960
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM WIDTH INSIDE THROAT WIDTH INSIDE YOKE WIDTH YOKE WIDTH BELOW LINEGUARD YOKE WIDTH ABOVE LINEGUARD THROAT HEIGHT THROAT HEIGHT BELOW LINEGUARD THROAT HEIGHT ABOVE LINEGUARD YOKE BAR HEIGHT YOKE BAR WIDTH EYE INSIDE HEIGHT EYE INSIDE WIDTH
A B C D E F NOT
SHOWN		 NOT
SHOWN		 J NOT
SHOWN		 NOT
SHOWN		 M N NOT
SHOWN		 NOT
SHOWN
18.50 7.00 8.13 1.75 2.75 2.50 — — 7.50 — — 1.85 1.38 — —
22.50 9.00 11.00 1.75 2.75 3.50 — — 8.50 — — 2.25 2.30 — —
24.50 9.00 13.00 1.75 2.75 3.50 — — 8.75 — — 2.25 2.30 — —
31.00 11.50 15.00 2.50 3.00 3.00 3.25 3.00 NA 5.75 4.00 2.45 2.45 — —
35.00 12.00 17.00 2.50 3.50 5.00 4.75 4.50 NA 6.75 5.25 2.55 2.55 — —
25.00 11.75 13.00 1.75 4.50 4.00 — — 9.00 — — 2.75 2.15 — —
37.00 12.50 17.50 3.00 4.00 7.75 4.50 5.00 15.00 6.80 6.00 2.75 2.92 — —
46.00 14.00 29.00 3.00 5.25 8.00 4.50 5.00 15.50 10.80 6.00 2.75 2.92 6.00 3.75
  • Please contact us for any custom product or non-standard sizes.


Aluminum Utili-Sheave Blocks

3 Ton Working Load Limit

SK-4 Light Weight Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life or light weight aluminum sheaves
  • Multi-use wide throat and Utili-Sheave for passing a variety of line, connecting links and terminations
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast aluminum alloy sides minimize weight without scarificing performance
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL HOOK PART # SWIVEL SHACKLE/EYE PART # WIRE ROPE MIN WLL (TONS) REGULAR YOKE WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT
SK-4 4" BB 191114 191214 191314 3/8 3.00 6.00 8.00 7.00
SK-4M 4" BB 191114M 191214M 191314M 3/8 3.00 7.50 9.50 8.50
SK-4R 4" SRB 191104 191204 191204 3/8 3.00 6.00 8.00 7.00
SK-4RM 4" SRB 191104M 191204M 191304M 3/8 3.00 7.50 9.50 8.50
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH INSIDE YOKE WIDTH THROAT HEIGHT YOKE BAR HEIGHT YOKE BAR WIDTH HOOK OPEN HOOK HEIGHT HOOK TOP THICK EYE INSIDE HEIGHT EYE INSIDE WIDTH
A B C D E NOT
SHOWN		 G NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 N P
9.63 3.25 4.63 1.31 2.00 1.13 4.50 0.91 0.78 1.11 3.25 1.00 1.50 1.50
9.63 3.25 4.63 1.31 2.00 1.13 4.50 0.91 0.78 1.11 3.25 1.00 1.50 1.50
9.63 3.25 4.63 1.31 2.00 1.31 4.50 0.91 0.78 1.11 3.25 1.00 1.50 1.50
9.63 3.25 4.63 1.31 2.00 1.31 4.50 0.91 0.78 1.11 3.25 1.00 1.50 1.50
  • Please contact us for any custom product or non-standard sizes.


Half-Sided Blocks

6.25 Ton to 15 Ton Working Load Limit

Rope Master Half Side Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Alloy steel sheaves are used on lightweight models 513 & 515
  • Equipped with tapered roller bearings for long life in higher line speed applications
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Half side design for strength with minimized weight
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL HOOK PART # SWIVEL SHACKLE/EYE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE/EYE WEIGHT SHEAVE # DRAW PIN
106 6" TRB 205600 205602 205601 3/8 1/2 6.25 21.00 24.25 24.25 222003 551410
108RA 8" TRB 205800A 205801A 205802A 1/2 5/8 6.25 28.70 34.70 35.00 223811 551465
110RA 10" TRB 206000A 206001A 206002A 1/2 5/8 8.00 38.55 46.00 47.00 224011 551465
112RA 12" TRB 206200A 206201A 206202A 1/2 5/8 8.00 47.00 56.00 57.00 224211 551465
210TR 10" TRB 206400 206401 206402 3/4 7/8 15.00 59.00 68.00 69.00 224603 551465
212TR 12" TRB 206800 206801 206802 3/4 7/8 15.00 69.00 78.00 79.00 224803 551465
513A 13" TRB 210001 — 210002 3/4 7/8 15.00 63.00 — 73.00 226404 551465
515A 15" TRB 210201 — 210202 7/8 1.00 15.00 73.00 — 83.00 226805*226705M 551465
  • Optional manganese steel sheave is part number 226705M. 226805 is standard alloy steel sheave.
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICK WIDTH THROAT BOTTOM INSIDE THROAT WIDTH YOKE WIDTH ABOVE THROAT HEIGHT THROAT HEIGHT BELOW THROAT HEIGHT ABOVE YOKE BAR HEIGHT YOKE BAR WIDTH HOOK OPEN HOOK HEIGHT HOOK TOP THICK HOOK TOP THICK SHACKLE HEIGHT EYE INSIDE HEIGHT EYE INSIDE WIDTH
A B C D E F NOT
SHOWN		 H J K L NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN
11.50 5.68 6.56 1.25 2.43 — 5.00 — — 1.09 1.25 1.31 3.50 1.53 1.19 5.38 — —
13.94 5.75 8.75 1.25 2.56 2.25 — 2.13 1.32 1.09 1.25 1.31 3.50 1.53 1.19 5.75 — —
17.38 5.75 10.50 1.38 2.56 2.56 — 3.25 2.50 1.25 1.25 1.50 4.00 1.82 1.38 4.75 — —
20.00 5.75 12.50 1.38 2.56 2.56 — 3.75 2.50 1.25 1.25 1.50 4.00 1.82 1.38 4.75 — —
18.00 7.00 10.50 2.00 2.63 2.63 — 2.37 3.00 1.58 1.63 1.50 4.50 1.82 1.38 5.25 — —
20.50 6.00 13.50 2.00 2.75 2.75 — 2.88 3.00 1.58 1.63 1.50 4.50 1.82 1.38 5.25 — —
21.50 6.00 13.50 2.00 2.75 2.75 7.25 2.88 2.25 1.50 1.63 — — — — 7.00 1.28 1.28
24.25 6.00 15.50 2.38 3.00 3.00 7.63 3.25 2.25 1.50 1.63 — — — — 7.00 1.28 1.28
  • Please contact us for any custom product or non-standard sizes.


Full-Sided Blocks

3.25 Ton to 15 Ton Working Load Limit

Rope Master Full Side Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Equipped with tapered roller bearings for long life in higher line speed applications
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Versatile draw pin design allows for rapid reeving and exchange of attaching style
  • Rugged cast alloy steel sides for demanding environments
  • ASTM B30.26 Compliant
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING REGULAR YOKE PART # SWIVEL HOOK PART # SWIVEL SHACKLE PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) REGULAR YOKE WEIGHT SWIVEL HOOK WEIGHT SWIVEL SHACKLE WEIGHT SHEAVE # DRAW PIN
6 6" TRB 200200 200203 200204 3/8 1/2 3.25 20.20 22.00 22.00 220203 551413
62-S 6" TRB 203600 203603 203604 3/8 1/2 3.75 26.00 28.65 27.00 221803 551413
82-S 8" TRB 204800 204803 204804 3/8 1/2 3.75 33.00 34.00 34.00 222603 551413
508 8" TRB 209800 — — 1 1 1/8 15.00 72.00 — — 226203 551468
EXTRA WIDE SHEAVE
64 6" TRB — 204003 204004 3/8 1/2 3.75 — 30.00 30.00 223603 —
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load for swivel attachments is four times the WLL.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
  • Model 64 has Rope Master snatch lock.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT BOTTOM INSIDE THROAT WIDTH INSIDE YOKE WIDTH THROAT HEIGHT YOKE BAR HEIGHT YOKE BAR WIDTH HOOK OPEN HOOK HEIGHT HOOK TOP THICK HOOK TOP THICK SHACKLE HEIGHT EYE INSIDE
A B C D E F G H J NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN		 NOT
SHOWN
12.75 5.75 6.50 2.50 2.75 2.50 4.75 1.25 1.38 1.50 3.63 1.11 1.13 4.15 0.78
13.75 5.75 6.75 2.75 2.75 2.50 5.00 1.25 1.38 1.50 3.63 1.11 1.13 4.15 0.78
16.50 5.50 8.50 2.75 2.75 2.50 5.25 1.25 1.38 1.50 3.63 1.11 1.13 4.15 0.78
15.00 11.00 9.50 4.00 4.00 5.25 6.50 2.00 2.00 — — — — — —
EXTRA WIDE SHEAVE
16.75 4.8125 10.25 1.00 2.25 — 2.00 — — 1.50 3.625 1.11 1.13 4.15 0.78
  • Please contact us for any custom product or non-standard sizes.


Trawl Blocks

10 Ton to 90 Ton Working Load Limit

TB-Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Equipped with tapered roller bearings for long life in higher line speed applications
  • Swivel eyes designed with thrust bearings for ease of rotation
  • Galvanized for a durable and corrosion resistant finish
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING SWIVEL SHACKLE / EYE PART # WLL (TONS) SWIVEL SHACKLE WEIGHT SHEAVE #
TB10W 10" TRB 560110 10.00 125.00 108526
TB16W 16" TRB 560100 25.00 370.00 101983
TB24W 24" TRB 560150 50.00 700.00 112403
TB30W 30" TRB 560175 90.00 1250.00 113003
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load for yoke attachments is five times WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH THROAT WIDTH THROAT HEIGHT EYE INSIDE HEIGHT EYE INSIDE WIDTH
A B C E F G H
25.00 8.75 11.00 5.38 5.00 3.75 2.50
39.00 12.00 17.00 7.38 9.00 4.50 3.00
43.00 12.00 25.00 7.38 7.38 4.50 3.00
55.00 16.00 31.00 7.38 6.00 3.38 3.38
  • Please contact us for any custom product or non-standard sizes.


Trawl Half-Side Blocks

5 Ton to 30 Ton Working Load Limit

BCM Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Equipped with tapered roller bearings for long life in higher line speed applications
  • Enclosed swivel eye to prevent net entanglement
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Galvanized for a durable corrosion resistant finish
  • Half side for light weight or full side design for maximized sheave protection
  • Rugged cast alloy steel sides for demanding environments
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING SWIVEL SHACKLE / EYE PART # SWIVEL SHACKLE / EYE WEIGHT WLL (TONS) SHEAVE #
BCM61 6" BB 307797 25.00 5.00 309272
BCM8 8" RB 307800 41.00 10.00 307805
BCM12 12" TRB 307912 79.00 10.00 308118M
BCM16 16" TRB 308357 132.00 20.00 308597M
BCM18 18" TRB 308369 151.00 20.00 308795M
BCM20 20" TRB 308379 330.00 30.00 309215M
  • BCM6 has bronze bushed sheave
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load is four times the WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH INSIDE THROAT WIDTH THROAT HEIGHT EYE INSIDE HEIGHT EYE INSIDE WIDTH
A B C D E F G
14.00 5.50 7.50 2.50 3.00 2.50 2.50
19.00 6.25 9.00 2.63 4.25 2.50 2.50
23.00 6.50 13.50 3.50 2.50 2.50 3.00
28.00 7.00 17.50 3.50 3.50 3.50 3.00
31.00 7.00 20.63 3.50 4.50 3.00 3.00
37.00 10.00 23.50 6.50 7.25 4.50 3.00
  • Please contact us for any custom product or non-standard sizes.

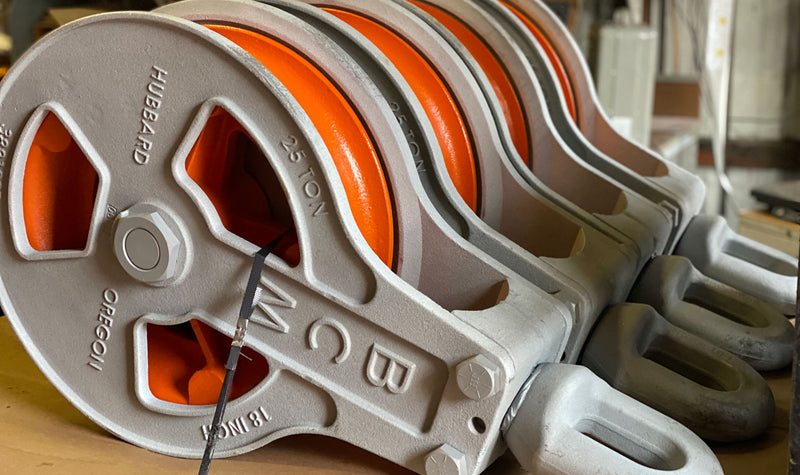

Trawl Full-Sided Blocks

10 Ton to 30 Ton Working Load Limit

BCM Series
  • Work hardening manganese steel sheaves maximize wire rope and sheave life
  • Equipped with tapered roller bearings for long life in higher line speed applications (BCM6 has bronze bushed sheave)
  • Enclosed swivel eye to prevent net entanglement
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Galvanized for a durable corrosion resistant finish
  • Half side for light weight or full side design for maximized sheave protection
  • Rugged cast alloy steel sides for demanding environments
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING SWIVEL SHACKLE / EYE PART # SWIVEL SHACKLE / EYE WEIGHT WLL (TONS) SHEAVE #
BCM12FS 12" TRB 307912T 87.00 10.00 308118M
BCM16FS 16" TRB 308357T 158.00 20.00 308597M
BCM18FS 20T 18" TRB 308369T 205.00 20.00 308795M
BCM18FS 25T 18" TRB 308870T 315.00 25.00 388005M
BCM20FS 20" TRB 308379T 370.00 30.00 309215M
EXTRA WIDE SHEAVE
BCM16 EWS 16" TRB 308357W 174.00 20.00 308591WM
BCM16FS EWS 16" TRB 308357TW 200.00 20.00 308591WM
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load is four times the WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH INSIDE THROAT WIDTH THROAT HEIGHT EYE INSIDE HEIGHT EYE INSIDE WIDTH
A B C D E F G
26.00 6.50 13.50 3.50 4.50 2.50 2.50
32.00 7.50 17.50 2.50 3.00 3.00 3.00
36.00 7.50 20.50 3.50 7.50 3.00 3.00
39.00 9.25 20.50 5.50 7.00 4.50 3.00
41.00 10.00 23.50 6.50 7.50 4.50 3.00
EXTRA WIDE SHEAVE
28.00 9.00 17.50 5.00 — 3.00 3.00
32.00 9.00 17.50 5.00 — 3.00 3.00
  • Please contact us for any custom product or non-standard sizes.


Wide Try Net & Outrigger Blocks

5 Ton to 10 Ton Working Load Limit

Wide Try Net Series
  • Multi-use wide throat and Utili-Sheave for passing a variety of line and nets
  • Enclosed swivel eye to prevent net entanglement
  • Recessed sheave prevents wire rope from binding between sheave and block side
  • Full sided block maximizes sheave protection and strength
  • Galvanized for a durable and corrosion resistant finish
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING SWIVEL SHACKLE / EYE PART # WLL (TONS) WEIGHT SHEAVE #
WIDE TRY NET BLOCK
BCM FB 6" BB 307700 5.00 16.70 309272
BCM SFB 6" BB 308800 10.00 25.00 307781
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load is four times the WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH INSIDE THROAT BOTTOM INSIDE THROAT WIDTH EYE INSIDE WIDTH EYE INSIDE HEIGHT
A B C D E F G
WIDE TRY NET BLOCK
19.00 8.00 6.50 2.25 5.75 2.50 2.50
21.00 9.50 6.50 3.68 6.75 3.00 3.00
  • Please contact us for any custom product or non-standard sizes.


Wide Try Net & Outrigger Blocks

3 Ton Working Load Limit

Outrigger Series
  • Full sided block maximizes sheave protection and strength
  • Galvanized for a durable corrosion resistant finish
SPECIFICATION
MODEL # SHEAVE DIAMETER BEARING PART # WIRE ROPE MIN WIRE ROPE MAX WLL (TONS) WEIGHT SHEAVE #
FULL SIDED BLOCKS
BCM OR 6" 1 sheave 6" BB 305100 7/16 1/2 3.00 16.70 304701
BCM OR 6" 2 sheave 6" BB 305000 7/16 1/2 3.00 25.00 304701
  • Please specify Part Number, Sheave Size, Working Load Limit (WLL), Bearing Style and Attaching Style when ordering.
  • Ultimate load is four times the WLL.
  • Ton equals 2,000 lbs.
DIMENSIONS
HEIGHT THICKNESS WIDTH INSIDE THROAT WIDTH THROAT HEIGHT EYE INSIDE WIDTH EYE INSIDE HEIGHT
A B C D E F G
FULL SIDED BLOCKS
15.27 4.50 5.00 1.87 1.50 1.10 1.10
15.27 6.62 5.00 1.87 1.50 1.10 1.10
  • Please contact us for any custom product or non-standard sizes.


Sheaves Products

Manganese & Cast Steel

SPECIFICATION
SHEAVE # ROPE SIZE (INCHES) APPROX. WEIGHT (LBS) MATERIAL
A-4 3/8 - 1/2 2.00 Manganese
A-6 3/8 - 1/2 6.00 Manganese
T-6 1/2 - 9/16 6.00 Manganese
106R 1/2 5.00 Manganese
706 1/2 8.00 Manganese
6171 3/8 - 1/2 5.00 Cast Steel
F-7 1/2 - 9/16 8.00 Manganese
A-8 1/2 - 5/8 7.00 Manganese
T-8 5/8 7.00 Manganese
108R 5/8 9.00 Manganese
F-8 5/8 - 3/4 13.00 Manganese
808 5/8 - 3/4 10.00 Manganese
308 7/8 - 1 9.00 Manganese
80 1 1/8 - 1 1/4 20.00 Manganese
6172 1/2 - 5/8 11.00 Cast Steel
T-10S 5/8 - 3/4 12.00 Manganese
BP-100 5/8 - 3/4 9.00 Manganese
R-10 5/8 - 3/4 16.00 Manganese
A-10 5/8 - 3/4 9.00 Manganese
410 5/8 - 3/4 12.00 Manganese
1010 7/8 - 1 17.00 Manganese
2210 7/8 - 1 16.00 Manganese
510 7/8 - 1 20.00 Manganese
310 1 1/4 20.00 Manganese
104406 3/4 22.00 Cast Steel
109080 5/8 - 3/4 18.00 Cast Steel
6173 5/8 - 3/4 16.00 Cast Steel
DIMENSIONS
A
OUTSIDE DIAMETER		 B
THREAD DIAMETER		 C
RIM WIDTH		 D
HUB WIDTH		 E
HUB DIAMETER		 F
BORE MIN-MAX
4.00 2.88 1.38 1.50 2.13 1.75
6.00 4.88 1.13 2.25 2.44 1.88
6.00 5.00 1.38 3.25 3.25 2.75
6.00 4.88 1.75 1.94 2.94 2.44
6.00 4.50 3.00 3.44 3.31 2.75
6.00 4.38 1.00 1.50 2.13 1.00-1.25
7.00 5.50 2.75 2.88 3.25 2.75
8.00 7.06 1.13 2.25 2.50 1.88
8.00 7.00 1.38 3.13 3.25 2.75
8.00 6.75 1.75 1.75 2.94 2.44
8.00 6.50 2.75 3.38 4.31 3.75
8.00 6.25 3.00 3.50 3.31 2.75
8.00 6.50 1.88 2.25 3.75 3.00
8.00 5.75 4.00 4.00 5.00 4.25
8.00 6.50 1.25 1.88 3.25 1-2
10.00 9.00 1.75 3.13 3.25 2.75
10.00 8.00 3.00 2.88 2.38 1.88
10.00 8.25 4.00 3.25 3.25 2.75
10.00 8.75 1.25 2.25 2.50 1.88
10.00 8.50 2.00 3.25 3.88 3.25
10.00 8.25 2.50 3.50 4.88 4.25
10.00 8.00 2.50 4.75 5.13 4.38
10.00 7.88 2.50 3.75 3.50 2.88
10.00 7.88 2.00 3.50 4.50 3.63
10.00 7.44 2.00 2.00 4.50 3.00
10.00 8.38 2.13 1.75 4.00 3.25
10.00 8.50 1.38 1.75 4.00 1.00-2.75

Sheaves Products

Manganese & Cast Steel

SPECIFICATION
SHEAVE # ROPE SIZE (INCHES) APPROX. WEIGHT (LBS) MATERIAL
A-12 3/4-7/8 15 Manganese
T-12 3/4 - 7/8 17 Manganese
412A 3/4 - 1 23 Manganese
512 7/8 - 1 26 Manganese
2212 1 1/8 - 1 1/4 28 Manganese
F-12 1 1/8 - 1 1/4 31 Manganese
2212TM 1 1/8 - 1 1/4 28 Manganese
312 1 1/4 - 1 3/8 26 Manganese
6174 5/8 - 3/4 29 Cast Steel
6175 5/8 - 3/4 36 Cast Steel
10450 7/8 23 Manganese
103220 3/4 - 7/8 26 Manganese
T-14 3/4 - 7/8 23 Manganese
414 3/4 - 1 27 Manganese
514 7/8 - 1 36 Manganese
2214 1 1/8 - 1 1/4 40 Manganese
F-14 1 3/8 - 1 1/2 52 Manganese
2214TM 1 1/4 - 1 1/2 52 Manganese
2014 1 1/2 - 1 3/4 52 Manganese
127920 7/8 38 Manganese
5375-2 3/4 - 1 33 Manganese
416 3/4 - 1 30 Manganese
2216 1 1/8 - 1 1/4 48 Manganese
16W 1 - 1 3/8 120 Manganese
F-16 1 1/2 - 1 3/4 105 Manganese
2016 1 1/2 - 1 3/4 66 Manganese
2616 1 1/2 - 1 3/4 89 Manganese
6176 7/8-1 63 Cast Steel
DIMENSIONS
A
OUTSIDE DIAMETER		 B
THREAD DIAMETER		 C
RIM WIDTH		 D
HUB WIDTH		 E
HUB DIAMETER		 F
BORE MIN-MAX
12.00 10.88 1.38 3.13 3.25 2.50
12.00 10.38 2.00 3.38 4.31 3.75
12.00 10.00 2.50 3.63 5.00 4.25
12.00 10.00 2.50 3.75 3.50 2.88
12.00 10.00 2.50 5.25 5.13 4.38
12.00 9.75 3.00 4.25 5.63 4.88
12.00 10.25 2.00 4.25 5.63 4.88
12.00 10.00 2.13 3.50 4.50 3.63
12.00 10.25 1.50 2.25 4.25 1-3
14.00 12.25 1.50 2.38 5.00 1-3
14.00 12.13 1.50 2.13 5.13 3.00
14.00 12.75 1.75 3.50 5.25 2.50-4.25
14.00 12.00 2.00 3.44 4.31 3.75
14.00 12.00 2.50 3.50 4.88 4.25
14.00 11.50 2.50 3.75 3.50 2.88
14.00 12.00 2.50 5.25 5.13 4.38
14.00 11.25 2.88 5.63 6.00 4.88
14.00 11.25 2.88 5.63 6.00 4.88
14.00 11.25 2.75 4.75 5.75 4.75
15.00 13.13 1.75 2.00 4.50 3.00
15.00 14.00 2.50 3.00 5.00 2.63
15.00 14.00 2.50 3.50 5.13 4.25
15.00 13.75 2.50 5.50 5.63 4.88
15.00 10.38 7.00 7.50 5.75 4.75
15.00 12.00 3.75 4.00 8.50 7.00
15.00 12.38 3.00 4.50 6.00 4.75
15.00 12.75 3.50 7.00 9.00 7.50
15.00 14.13 1.75 2.75 7.00 2.5-5.00

Sheaves Products

Manganese & Cast Steel

SPECIFICATION
SHEAVE # ROPE SIZE (INCHES) APPROX. WEIGHT (LBS) MATERIAL
6177 1-1 1/8 71 Cast Steel
418 3/4-1 44 Manganese
180 1 1/8-1 3/8 66 Manganese
2218 1 1/8-1 1/4 65 Manganese
2218TM 1 1/4-1 1/2 65 Manganese
2000 1 1/8-1 1/4 88 Manganese
2220 1-1 1/8 57 Manganese
11055 1 1/8-1 1/4 95 Cast Steel
6178 1-1 1/4 94 Cast Steel
11096 3/4-1 105 Cast Steel
6179 1-1 1/8 118 Cast Steel
2222 1-1 1/4 75 Manganese
6180 1-1 1/4 130 Cast Steel
6124 1-1 1/4 140 Cast Steel
24W 1 1/4-1 3/8 220 Manganese
2400 1-1 1/8 105 Manganese
10382 1 1/2-1 3/4 --- Cast Steel
2624 1 1/2-2 210 Cast Steel
260000 1 1/4 156 Manganese
3000 1 1/4-1 3/8 267 Manganese
3030 1 1/4-1 3/8 235 Manganese
10327 1 1/4-1 1/2 170 Manganese
10337 1 1/4-1 3/8 252 Manganese
6130 3/4-1 1/8 175 Manganese
30W 1 3/8-1 1/2 350 Manganese
11060 1 1/4 310 Manganese
3600 1 3/8-1 5/8 460 Manganese
102240 1 1/4 --- Cast Steel
10381 1 3/8-1 1/2 345 Manganese
422400 2 1/2-3 1/2 1200 Manganese
11061 1 1/8-1 1/4 650 Cast Steel
614800 1 1/2-2 900 Manganese
DIMENSIONS
A
OUTSIDE DIAMETER		 B
THREAD DIAMETER		 C
RIM WIDTH		 D
HUB WIDTH		 E
HUB DIAMETER		 F
BORE MIN-MAX
18.00 15.50 2.00 2.75 7.50 2.50-6.00
18.00 16.00 2.50 3.50 5.13 4.25
18.00 14.75 4.00 4.88 5.75 4.88
18.00 15.75 2.50 5.50 5.63 4.88
18.00 15.50 3.00 4.19 5.75 4.88
20.00 17.50 15.50 6.00 7.50 6.38
20.00 17.38 2.50 4.00 5.75 4.75-4.875
20.00 17.00 2.75 3.25 7.25 4.50-5.75
20.00 17.25 2.00 2.63 7.75 2.75-6.50
21.00 19.25 2.50 3.75 7.00 5.50
22.00 19.25 2.13 3.00 7.75 2.75-6.50
22.00 19.75 3.00 4.00 5.75 4.75-4.625
24.00 21.25 2.25 3.00 7.50 3.25-6.50
24.00 20.50 3.25 4.13 7.50 6.50
24.00 18.50 7.00 7.25 5.75 4.75
24.00 20.50 4.50 6.75 7.50 6.88
24.00 20.00 3.50 9 3/8-7 10.88 8.63
24.00 20.50 3.50 7.25 8.50 7.00
26.00 23.50 2.75 3.88 10.50 4.00-8.50
30.00 26.00 5.00 8.00 8.75 7.25-7.50
30.00 26.25 5.00 8.00 7.50 6.38
30.00 26.25 3.25 4.25 8.38 6.50
30.00 23.25 3.50 3.75 5.75 3.50
30.00 26.88 2.50 3.75 7.00 4.88
30.00 24.50 7.00 7.25 9.00 7.25-7.50
32.63 29.50 2.50 3.75 10.00 7.00-8.50
36.00 30.00 6.00 7.38 9.38 7.25-7.50
36.00 33.00 3.00 3.25 – 6.50
42.00 38.25 3.50 4.00 10.75 9.00
42.00 35.00 5.25 6.25 12.00 6.5-9.00
47.00 43.75 3.00 5.25 10.00 6.75-8.50
48.00 44.13 4.38 6.25 12.50 9.00

Fairleads and Lead Sheaves Products

Balanced Head Fairleads
Single Sheave—Flange Mounted
  • Cast manganese sheaves.
  • Sheaves feature tapered roller bearings.
  • Head revolves 360° on bearings.
  • Alloy steel pins.
  • Will withstand the breaking strength of new 6x19 or 6x37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications rigged at 90° angles.
SPECIFICATION
MODEL NUMBER WIRE ROPE SIZE2 SHEAVE DIAMETER1 BOLT HOLE DIAMETER BOLT HOLE
#s		 LBS
KGS
FF-6 in. 3/8 6 0.95 4 70
mm. 9 152 24.00 31
FF-7 in. 1/2 7 0.95 4 105
mm. 13 178 24.00 48
F80 in. 1/2-3/4 8 0.82 8 125
mm. 13-19 203 21.00 57
FF-10 in. 3/4-1 10 1.06 8 285
mm. 19-25 254 27.00 129
SK100F in. 3/4-1 10 1.06 8 295
mm. 19-25 254 27.00 134
FF-12B in. 1-1 1/4 12 0.82 8 550
mm. 25-32 305 21.00 250
DIMENSIONS
A B C D E F G H
in. 10.00 10.00 6.50 8.13 5.25 5.25 6.81 2.00
mm. 254.00 254.00 165.00 206.00 133.00 133.00 173.00 51.00
in. 10.00 10.00 8.00 9.25 5.00 6.38 8.13 3.13
mm. 254.00 254.00 203.00 235.00 127.00 162.00 206.00 79.00
in. 14.00 14.00 10.50 10.50 6.25 7.25 8.75 5.25
mm. 356.00 356.00 267.00 267.00 159.00 184.00 222.00 133.00
in. 18.50 18.50 11.00 14.25 10.00 8.75 10.50 3.00
mm. 470.00 470.00 279.00 362.00 254.00 222.00 267.00 76.00
in. 14.00 14.00 12.50 12.25 7.50 8.75 11.50 6.00
mm. 356.00 356.00 318.00 311.00 191.00 222.00 292.00 152.00
in. 17.00 17.00 11.50 15.50 9.75 10.63 12.50 3.00
mm. 432.00 432.00 292.00 394.00 248.00 270.00 318.00 76.00
  • 1Fairleads with sheave sizes of 12” and above are available with weld-down or bolt-down bases.
  • 2Wide throat fairleads. These models are available without roller for mooring fairlead applications.
  • 3Larger sizes available upon request.


Fairleads and Lead Sheaves Products

Balanced Head Fairleads
Single Sheave—Deck Mounted
  • Available as standard and wide throat (mooring) models for easy passing of wire rope eyes, splices and shackles.
  • Cast manganese sheaves.
  • Sheaves feature tapered roller bearings.
  • Bronze bushed sheaves with stainless steel pins available on request.
  • Head revolves 360° on bearings.
  • Alloy steel pins.
  • Will withstand the breaking strength of new 6x19 or 6x37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications rigged at 90° angles.
SPECIFICATION
MODEL NUMBER WIRE ROPE SIZE2 SHEAVE DIAMETER1 BOLT HOLE DIAMETER LBS
KGS
F-6 in. 3/8 6 0.95 70
mm. 10 152 24.00 32
F-7 in. 1/2 7 0.95 105
mm. 13 178 21.00 48
F-802 in. 1/2-3/4 8 0.95 170
mm. 13-19 203 21.00 77
F-10 in. 3/4-1 10 1.03 435
mm. 19-25 254 26.00 197
F-1002 in. 3/4-1 10 1.03 400
mm. 19-25 254 26.00 181
DIMENSIONS
A B C D E F G H J
in. 9.25 7.50 12.06 8.13 13.44 5.25 6.81 2.00 9.56
mm. 235.00 191.00 306.00 206.00 341.00 133.00 173.00 51.00 243.00
in. 11.00 8.00 14.50 9.25 15.50 6.38 8.13 3.13 11.63
mm. 279.00 203.00 368.00 235.00 394.00 162.00 206.00 79.00 295.00
in. 15.25 7.50 16.13 10.50 17.50 7.25 8.75 5.25 13.75
mm. 387.00 191.00 410.00 267.00 445.00 184.00 222.00 133.00 349.00
in. 20.00 12.00 19.25 14.25 24.50 8.75 10.50 3.00 15.00
mm. 508.00 305.00 489.00 362.00 622.00 222.00 267.00 76.00 381.00
in. 12.00 20.00 20.25 12.25 21.88 8.75 11.50 6.00 17.13
mm. 305.00 508.00 514.00 311.00 557.00 222.00 292.00 152.00 435.00
  • 1Fairleads with sheave sizes of 12” and above are available with weld-down or bolt-down bases.
  • 2Wide throat fairleads. These models are available without roller for mooring fairlead applications.
  • 3Larger sizes available upon request.


Fairleads and Lead Sheaves Products

Balanced Head Fairleads
Double Sheave—Flange Mounted
  • Cast manganese sheaves.
  • Sheaves feature tapered roller bearings.
  • Head revolves 360° on bearings.
  • Alloy steel pins.
  • Will withstand the breaking strength of new 6x19 or 6x37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications rigged at 90° angles.
SPECIFICATION
MODEL NUMBER WIRE ROPE SIZE2 BOLT DIAMETER BOLT HOLE #s LBS
KGS
UF 100-4 in. To 3/8 0.50 6 53
mm. 10 13.00 32
UF 100-6 in. To 1/2 0.63 6 125
mm. 13 16.00 57
UF 100-8 in. To 5/8 0.63 6 155
mm. 16 16.00 70
UF 100-10 in. To 3/4 0.63 6 185
mm. 19 16.00 84
UF 100-12 in. To 7/8 0.75 6 360
mm. 22 19.00 163
DIMENSIONS
A B C D E F G H J K L
in. 1.00 2.75 4.00 1.38 3.00 10.00 8.38 4.44 1.50 6.38 2.69
mm. 25.00 70.00 102.00 35.00 76.00 254.00 213.00 113.00 38.00 162.00 68.00
in. 1.88 4.63 6.00 2.00 4.00 12.13 10.00 9.50 2.25 7.25 3.88
mm. 48.00 117.00 152.00 51.00 102.00 308.00 254.00 241.00 57.00 184.00 98.00
in. 1.88 6.00 8.00 2.25 4.00 12.13 10.00 12.00 2.25 8.25 4.88
mm. 48.00 152.00 203.00 57.00 102.00 308.00 254.00 305.00 57.00 210.00 124.00
in. 1.88 8.50 10.00 2.00 4.00 12.13 10.00 14.50 2.25 9.25 5.88
mm. 48.00 216.00 254.00 51.00 102.00 308.00 254.00 368.00 57.00 235.00 149.00
in. 2.38 10.00 12.00 2.50 5.38 15.75 13.50 18.44 2.25 11.75 7.00
mm. 60.00 254.00 305.00 64.00 137.00 400.00 343.00 468.00 57.00 298.00 178.00
  • 1Fairleads with sheave sizes of 12” and above are available with weld-down or bolt-down bases.
  • 2Wide throat fairleads. These models are available without roller for mooring fairlead applications.
  • 3Larger sizes available upon request.


Fairleads and Lead Sheaves Products

Unbalanced Head Fairleads
Single Sheave—Flange Mounted
  • Cast manganese sheaves.
  • Sheaves feature tapered roller bearings.
  • Head revolves 360° on bearings.
  • Alloy steel pins.
  • Will withstand the breaking strength of new 6x19 or 6x37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications rigged at 90° angles.
SPECIFICATION
MODEL NUMBER WIRE ROPE SIZE2 BOLT DIAMETER BOLT HOLE #s LBS
KGS
UF 50-4 in. To 3/8 0.50 4 25
mm. 10 13.00 16
UF 50-6 in. To 1/2 0.63 6 70
mm. 13 16.00 32
UF 50-8 in. To 5/8 0.63 6 85
mm. 16 16.00 39
UF 50-10 in. To 3/4 0.63 6 95
mm. 19 16.00 43
DIMENSIONS
A B C D E F G H J K
in. 1.38 4.00 2.75 8.00 6.75 1.63 1.63 4.75 5.00 6.75
mm. 35.00 102.00 70.00 203.00 171.00 41.00 41.00 121.00 127.00 171.00
in. 2.00 6.00 4.63 9.75 7.88 2.00 2.00 5.25 6.25 8.25
mm. 51.00 152.00 117.00 248.00 200.00 51.00 51.00 133.00 159.00 210.00
in. 2.25 8.00 6.00 9.75 7.88 2.00 2.00 5.25 6.25 9.25
mm. 57.00 203.00 152.00 248.00 200.00 51.00 51.00 133.00 159.00 235.00
in. 2.00 10.00 8.50 9.75 7.88 2.00 2.00 5.25 6.25 10.25
mm. 51.00 254.00 216.00 248.00 200.00 51.00 51.00 133.00 159.00 260.00
  • 1Roller sheave bearings on UF 50-4.
  • 2Specify rope size when ordering.
  • 3Larger sizes available upon request.


Fairleads and Lead Sheaves Products

Vertical Lead Sheaves
Weld-Down or Bolt-Down Bases
  • Bronze bushed sheaves with optional tapered roller bearings.
  • Alloy steel pins.
  • Will withstand the breaking strength of new 6x19 or 6x37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications rigged at 90° angles.
  • Available on request:
    • Sheave sizes above 42”
    • Double sheave models
    • Custom dimensions
SPECIFICATION
MODEL
NUMBER		 SUGGESTED WIRE
SIZE		 SHEAVE
DIAMETER		 PIN
DIAMETER
VLS-4 in. 1/4-3/8 4 3/4
mm. 6-10 101 19
VLS-6 in. 5/16-1/2 6 1
mm. 8-13 152 25
VLS-8 in. 3/8-5/8 8 1 1/2
mm. 10-16 203 38
VLS-12 in. 1/2-3/4 12 2
mm. 13-19 305 51
VLS-14 in. 5/8-3/4 14 2 1/2
mm. 16-19 356 64
VLS-16 in. 3/4-1 16 2 1/2
mm. 19-25 406 64
VLS-18 in. 3/4-1 18 2 1/4
mm. 19-25 457 56
DIMENSIONS
A B C D
in. 4.00 6.00 3.00 0.50
mm. 102.00 152.00 76.00 13.00
in. 4.00 8.00 4.50 0.50
mm. 102.00 203.00 114.00 13.00
in. 6.50 10.00 6.00 0.63
mm. 165.00 305.00 152.00 19.00
in. 9.50 16.00 8.00 0.88
mm. 241.00 406.00 203.00 22.00
in. 9.50 16.00 9.00 0.88
mm. 241.00 406.00 229.00 22.00
in. 10.00 18.00 10.50 0.88
mm. 254.00 457.00 267.00 22.00
in. 11.00 19.00 12.50 1.00
mm. 279.00 483.00 318.00 25.00
  • 3Larger sizes available upon request.

Fairleads and Lead Sheaves Products

Horizontal Lead Sheaves
Weld-Down or Bolt-Down Bases
  • Bronze bushed sheaves.
  • Sheaves feature tapered roller bearings.
  • Head revolves 360° on bearings.
  • Alloy steel pins.
  • Will withstand the breaking strength of new 6x19 or 6x37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications rigged at 90° angles.
  • Available on request:
    • Sheave sizes above 42”
    • Double sheave models
    • Custom dimensions
SPECIFICATION
MODEL
NUMBER		 WIRE
ROPE SIZE		 SHEAVE
DIAMETER		 PIN
DIAMETER
HLS-8 in. 3/8-1/2 8 1 1/2
mm. 10-13 203 38
HLS-12 in. 1/4-5/8 12 2
mm. 6-16 305 51
HLS-14 in. 5/8-3/4 14 2
mm. 16-19 356 51
HLS-16 in. 3/4-7/8 16 3 1/2
mm. 16-19 406 89
HLS-18 in. 7/8-1 18 3 1/2
mm. 22-25 457 89
HLS-20 in. 1-1 1/4 20 4 1/2
mm. 22-32 508 114
DIMENSIONS
A
WIDTH1		 B
LENGTH		 C
SHEAVE CENTER		 D
BASE THICKNESS
in. 12.00 10.00 1.38 0.63
mm. 305.00 254.00 35.00 16.00
in. 18.00 18.00 1.75 0.75
mm. 457.00 457.00 44.00 19.00
in. 19.00 19.00 2.25 0.88
mm. 483.00 483.00 57.00 22.00
in. 21.00 21.00 2.50 0.88
mm. 533.00 533.00 64.00 22.00
in. 28.00 28.00 2.50 1.13
mm. 711.00 711.00 64.00 29.00
in. 22.50 23.50 2.75 1.25
mm. 572.00 597.00 70.00 32.00

Fairleads and Lead Sheaves Products

Horizontal Deck Sheaves
'O’ and ‘R’ Style
  • Heavy duty, extra wide manganese steel sheaves.
  • Sheaves feature tapered roller bearings.
  • Bronze bushed sheaves optional.
  • Available for wire and synthetic rope.
  • Alloy steel pins.
  • Will withstand the breaking strength of new 6x19 or 6x37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications rigged at 90° angles.
SPECIFICATION
MODEL NUMBER WIRE ROPE SIZE2 LBS
KGS
DS-10W-O in. 1 max 200
mm. 25 max 90
DS-16W-O in. 1 1/4 max 360
mm. 32 max 163
DS-16W-R in. 1 1/4 max 570
mm. 32 max 259
DS-24W-O in. 1 3/8 max 621
mm. 35 max 282
DS-30W-O in. 1 1/2 max 1000
mm. 38 max 454
DIMENSIONS
A B C D E F G H J K L M
in. 10.00 8.00 5.50 4.00 7.75 7.75 17.00 2.25 –– –– –– ––
mm. 254.00 203.00 140.00 102.00 197.00 197.00 432.00 57.00 –– –– –– ––
in. 16.00 10.00 7.00 5.00 10.00 12.00 27.00 2.00 –– –– –– ––
mm. 406.00 254.00 178.00 127.00 254.00 305.00 686.00 51.00 –– –– –– ––
in. 16.00 10.00 7.00 5.00 10.00 12.00 37.25 2.00 2.00 14.25 13.00 8.00
mm. 406.00 254.00 178.00 127.00 254.00 305.00 946.00 51.00 51.00 362.00 330.00 203.00
in. 24.00 18.50 7.00 5.13 10.25 18.00 35.00 2.00 –– –– –– ––
mm. 610.00 470.00 178.00 130.00 260.00 457.00 889.00 51.00 –– –– –– ––
in. 30.00 24.50 7.00 5.25 10.50 22.00 41.00 2.00 –– –– –– ––
mm. 762.00 622.00 178.00 133.00 267.00 559.00 1041.00 51.00 –– –– –– ––

Fairleads and Lead Sheaves Products

Roller Fairleads
Bolt-Down Style
  • Alloy steel rollers—heat treated.
  • Bronze bushings.
  • Alloy steel pins.
  • Bolt down bases.
SPECIFICATION
MODEL NUMBER WIRE ROPE SIZE2 VERTICAL ROLLER HORIZONTAL ROLLER OPENING WxH BOLT HOLE #s LBS
KGS
RFB-0 in. 5/16-3/8 2 1/4x6 1/2 2 1/4x6 1/2 2 1/4x2 1/4 4 52
mm. 8-10 57x165 57x165 57x57 24
RFB-1 in. 5/8-7/8 4x11 3/8 4x11 3/8 2 3/4x2 3/4 4 235
mm. 16-22 102x289 102x289 70x70 107
RFB-2 in. 1-1 1/4 6x15 3/8 5x11 5x4 4 700
mm. 25-32 152x391 127x279 127x102 318

DIMENSIONS
A B C D E F G H
in. 12.00 5.25 8.19 10.25 3.88 0.50 0.78 1.00
mm. 305.00 133.00 208.00 260.00 98.00 13.00 20.00 25.00
in. 17.50 10.50 13.13 15.00 8.00 0.75 1.06 1.38
mm. 444.00 267.00 333.00 381.00 203.00 19.00 27.00 35.00
in. 26.00 17.00 18.50 22.00 12.50 1.13 1.53 1.50
mm. 660.00 432.00 470.00 559.00 318.00 29.00 39.00 38.00

Shackle Products

Mandel Fairlead Shackle
  • Forged, quenched and tempered.
  • Superior strength, hardness & uniformity.
  • Stainless steel mooring shackle with sleek shape designed to pass through fairleads.
  • Size & working load permanently imprinted.
SPECIFICATION
PART # WLL
(TONS)		 PROOF LOAD ULTIMATE LOAD WEIGHT
(KGS)		 WEIGHT
(LBS)
1001265 60.00 70.00 120.00 17.90 39.50
DIMENSIONS
A B C D E F R
IN MM IN MM IN MM IN MM IN MM IN MM IN MM
13.2 335 5.75 146 5.10 130 3.20 81 4.50 114 5.00 127 2.25 57
  • Metric Ton = 2205lbs
  • *All Load Weights in Metric Tons
  • Additional sizes available by special order



Smart ShackleTM Series
Instrumented Load Shackles

Proudly made by Skookum in the USA.
The only domestic load shackle with full certification, traceability and manufacturer's warranty.
  • 5t to 410t capacities.
  • Provides load measurement with cabled output for use with the LCI-80x Smart ShackleTM Controller.
  • Compatible with digital displays, PLCs, data acquisition systems (DAC), etc.
  • Standard output: cabled 4-20mA.
  • Optional outputs include: mV/V, RS-485, and wireless.
  • Traceable calibration certificate provided.
  • Applications include heavy lifting, cable tension monitoring, crane weighing, structural and other load testing.
SPECIFICATION
SIZE
(INCHES)		 WLL1
(TONS)		 WEIGHT
(LBS)
5/8 3.50 2.00
1 7.00 5.50
2 52.00 42.00
3 117.00 136.00
  • 1Design factor is 5 to 1
  • IP PROTECTION: IP67/68
  • ACCURACY: +/- 1%
  • OPERATING TEMP: -25 oC to +70 oC
  • Please contact us for any custom product or non-standard sizes.
DIMENSIONS
NOMINAL
D		 W TOLERANCE
±		 L TOLERANCE
±		 B R P
.75 1.06 ± .063 2.50 ± .125 1.75 1.63 0.75
1.13 1.69 ± .063 3.75 ± .250 2.69 2.25 1.13
2.00 3.25 ± .125 7.75 ± .250 5.75 5.00 2.25
3.00 5.00 ± .126 13.00 ± .750 7.88 6.50 3.25



Smart ShackleTM Series Instrumentation

Report Generator PDF Report
SenseDAC Software
LCI-80X SMART SHACKLETM CONTROLLER BY MEASUREMENT TECHNOLOGY NORTHWEST

Portable Testing & Data Acquisition System

  • Display and monitor one or more Smart Shackle(s) in real time with USB data-logging, audible alarm, configurable set point alarms, relays and outputs for control functionality.
  • Report Generator Software creates turn-key branded reports for load tests and other applications.
  • SenseDAC software provides remote display of Smart Shackle load data in real time with graphical user interfaces featuring numerical, peak, trending load data, graphing, and reporting views. SenseDAC can bridge the gap between your Smart Shackle and cloud data monitoring.


OTHER DISPLAY OPTIONS
Wireless Handheld Display
Scoreboard
Dash Mount LCI-80x
SenseDAC Software


Shackle Products

Alloy Chain Shackles
  • Skookum Gold Standard Forgings
  • All sizes are forged, quenched and tempered.
  • Enamel, zinc plate or galvanized finish.
  • Custom sizes & materials (stainless steel, etc.) are available upon request.
  • Superior strength, hardness & uniformity.
  • Size & working load permanently imprinted.
  • Material heat codes imprinted on bale and pin.
SPECIFICATION
SIZE
(INCHES)		 WLL1
(TONS)		 WEIGHT2
(LBS)		 PART #
#270 #271 #321 #325
1 16.00 5.50 627008 627108 632108 ––
1 1/8 17.50 6.60 627009 627109 632109 ––
1 1/4 21.00 8.90 627010 627110 632110 ––
1 3/8 26.00 12.00 627011 627111 632111 ––
1 1/2 30.00 16.20 627012 627112 632112 ––
1 5/8 35.00 21.00 627013 627113 632113 ––
1 3/4 40.00 25.00 627014 627114 632114 632514
2 52.00 36.00 627016 627116 632116 632516
2 1/4 67.00 60.00 –– –– 632118 632518
2 1/2 82.00 74.00 –– –– 632120 632520
2 3/4 104.00 90.00 –– –– 632122 632522
3 117.00 110.00 –– –– 632124 632524
3 1/2 150.00 200.00 –– –– 632128 632528
4 175.00 310.00 –– –– 632132 632532
DIMENSIONS
D W TOLERANCE
±		 L TOLERANCE
±		 R P
1.00 1.69 =/- 0.6 3.25 ± .25 2.25 1.13
1.13 1.81 ± 0.13 3.56 ± .25 2.63 1.25
1.25 2.03 ± .0625 3.94 ± .25 2.88 1.3
1.38 2.25 ± .125 4.44 ± .25 3.25 1.50
1.50 2.38 ± .125 4.88 ± .25 3.44 1.63
1.635 2.63 ± .125 5.25 ± .25 4.00 1.7
1.75 2.88 ± .125 5.75 ± .25 4.50 2.00
2.00 3.25 ± .125 6.75 ± .50 5.13 2.25
2.25 3.88 ± .125 7.13 ± .50 5.25 2.50
2.50 4.13 ± .125 8.00 ± .50 6.25 2.75
2.75 4.50 ± .125 8.25 ± .75 6.25 3.00
3.00 5.13 ± .125 9.00 ± .75 6.50 3.25
3.50 5.75 ± .25 10.50 ± .75 8.00 3.75
4.00 6.50 ± .25 12.00 ± .75 8.00 4.25
  • 1Ton=2,000lbs - Design factor is 5 to 1.
  • 2Weights vary slightly with style of shackle pin used. Specifications subject to change without notice.

Shackle Products

Alloy Anchor Shackles
  • Skookum Gold Standard Forgings
  • All sizes are forged, quenched and tempered.
  • Enamel, zinc plate or galvanized finish.
  • Custom sizes & materials (stainless steel, etc.) are available upon request.
  • Superior strength, hardness & uniformity.
  • Size & working load permanently imprinted.
  • Material heat codes imprinted on bale and pin.
SPECIFICATION
SIZE
(INCHES)		 WLL1
(TONS)		 WEIGHT2
(LBS)		 PART #
#263 #264 #320 #330
1/2 5.00 1.00 626304 626404 632004 633004
5/8 7.00 2.00 626305 626405 632005 633005
3/4 9.00 3.00 626306 626406 632006 633006
7/8 12.00 4.00 626307 626407 632007 633007
1 16.00 5.50 626308 626408 632008 633008
1 1/8 18.00 8.00 626309 626409 632009 633009
1 1/4 21.00 11.00 626310 626410 632010 633010
1 3/8 26.00 14.00 626311 626411 632011 633011
1 1/2 31.00 18.00 626312 626412 632012 633012
1 5/8 35.00 23.00 626313 626413 632013 633013
1 3/4 41.00 30.00 626314 626414 632014 633014
2 52.00 42.00 626316 626416 632016 633016
2 1/4 67.00 57.00 626318 626418 632018 633018
2 1/2 82.00 85.00 626320 626420 632020 633020
2 3/4 104.00 100.00 626322 626422 632022 633022
3 117.00 136.00 626324 626424 632024 633024
3 1/2 150.00 256.00 –– –– 632028 633028
DIMENSIONS
D W TOLERANCE
±		 L TOLERANCE
±		 B R P
0.63 1.19 ± .0625 1.88 ± .125 1.28 1.44 0.63
0.75 1.06 ± .0625 2.50 ± .125 1.75 1.63 0.75
0.88 1.25 ± .0625 2.88 ± .25 2.00 1.84 0.88
1.00 1.44 ± .0625 3.31 ± .25 2.28 2.13 1.00
1.13 1.69 ± .0625 3.75 ± .25 2.69 2.25 1.13
1.13 1.81 ± .0625 4.25 ± .255 2.94 2.63 1.2
1.25 2.03 ± .0625 4.63 ± .25 3.25 3.00 1.38
1.38 2.25 ± .125 5.25 ± .25 3.63 3.25 1.50
1.50 2.38 ± .125 5.75 ± .25 3.88 3.44 1.63
1.63 2.63 ± .125 6.25 ± .25 4.63 4.00 1.75
1.75 2.88 ± .125 7.00 ± .25 5.00 4.25 2.00
2.00 3.25 ± .125 7.75 ± .50 5.75 5.00 2.25
2.25 3.88 ± .125 9.25 ± .50 6.50 5.50 2.50
2.50 4.13 ± .125 10.50 ± .50 7.25 5.88 2.75
2.75 4.50 ± .125 11.50 ± .75 7.50 6.25 3.00
3.00 5.00 ± .125 13.00 ± .75 7.88 6.50 3.25
3.50 5.75 ± .25 15.00 ± .75 9.50 8.00 3.75
  • 1Ton=2,000lbs - Design factor is 5 to 1.
  • 2Weights vary slightly with style of shackle pin used. Specifications subject to change without notice.

Shackle Products

Sheet Pile Shackle
  • The No. 59A shackles were specifically designed for pulling sheet piling. They are equipped with a easy opening pin which will not detach and become lost. No tools are required.
  • Max opening with pin in open (unlocked) position.
  • Design factor is 5 to1.
  • Replacement pins must replaced or repaired by Skookum in Hubbard, OR.
SPECIFICATION
SIZE PART # WLL1
(TONS)		 WEIGHT
(LBS)		 OPENING2
J
1 605908 8.00 10.00 1 3/4
1 1/8 09 10.00 13.50 1 7/8
1 1/4 605910 12.00 18.00 2.00
1 1/2 605912 17.00 29.00 2 1/8
1 3/4 605914 24.00 45.00 2 1/2
2 605916 30.00 63.00 3.00
DIMENSIONS
A
 B
 C
 D
 E
 F
 G
 H
4.25 2.25 1.00 1.13 7.00 ± .25 0.63 2.38 5.00
4.50 2.50 1.00 1.25 8.00 ± .50 0.75 3.00 5.00
5.25 2.75 1.25 1.38 9.00 ± .50 0.88 3.00 5.00
6.25 3.00 1.50 1.63 10.00 ± .50 1.13 3.50 6.00
7.00 3.50 1.75 2.00 11.00 ± .50 1.25 4.00 7.00
8.00 4.00 2.00 2.25 12.00 ± .75 1.38 4.50 8.00
  • 1Design factor is 5 to 1.
  • 2Max opening with pin in open (unlocked) position.
  • Tons = 2000lbs


Shackle Products

SKOOKUM PART NUMBER 615912
Sheet Pile Shackle Ground Release
  • 12 ton WLL @ 4:1 design factor.
  • Equipped with Skookum 1” #320 bolt type anchor shackle
  • Built with high strength steel.
  • 12” lg. stainless steel release cable with thimble.
  • Repair Kit Part Number 615912K


101 Screw Pin Shackle

With 1/8” oversize screw pin; most commonly used shackle for general rigging

.
PART NO. SIZE
(S)		 WLL
(TONS)		 P J B R WEIGHT
610105 5/8" 6.00 0.75 0.88 1.38 2.25 1.50
610106 3/4" 9.00 0.88 1.00 1.63 2.75 2.50
610107 7/8" 12.00 1.00 1.13 1.75 3.00 3.50
610108 1" 16.00 1.13 1.25 2.00 3.25 4.50
610109 1 1/8" 18.00 1.25 1.38 2.13 3.50 6.00
610110 1 1/4" 21.00 1.38 1.50 2.25 4.00 8.00
610111 1 3/8" 26.00 1.50 1.63 2.63 4.50 11.00
610112 1 1/2" 31.00 1.63 1.75 2.88 5.00 15.00
610113 1 5/8" 35.00 1.75 1.88 3.13 5.25 19.00
610114 1 3/4" 41.00 2.00 2.25 3.25 6.00 21.00
610116 2" 52.00 2.25 2.50 3.63 6.50 30.00



102 Bolt Type Shackle

Same bale configuration as above #101; pin is complete with nut and molly hole. This shackle is frequently referred to as a Bolt Type pin shackle.

PART NO. SIZE
(S)		 WLL
(TONS)		 P J B R WEIGHT
610205 5/8" 6.00 0.75 0.88 1.38 2.25 2.00
610206 3/4" 9.00 0.88 1.00 1.63 2.75 2.50
610207 7/8" 12.00 1.00 1.13 1.75 3.00 4.50
610208 1" 16.00 1.13 1.25 2.00 3.25 5.00
610209 1 1/8" 18.00 1.25 1.38 2.13 3.20 7.00
610210 1 1/4" 21.00 1.38 1.50 2.25 4.00 9.00
610211 1 3/8" 26.00 1.50 1.63 2.63 4.50 12.00
610212 1 1/2" 31.00 1.63 1.75 2.88 5.00 16.00
610213 1 5/8" 35.00 1.75 1.88 3.13 5.25 20.00
610214 1 3/4" 41.00 2.00 2.25 3.25 6.00 23.00
610216 2" 52.00 2.25 2.50 3.63 6.50 35.00



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description:
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING





105 Straight Side / Screw Pin Shackle

SPECIFICATIONDIMENSIONS
PART NO. SIZE
(S)		 WLL
(TONS)		 WEIGHT (LBS) P J R
610504 1/2" 4.00 1.00 0.63 0.75 2.25
610505 5/8" 6.00 1.50 0.75 0.88 2.50
610506 3/4" 9.00 2.50 0.88 1.00 2.75
610507 7/8" 12.00 3.50 1.00 1.13 3.00
610508 1" 16.00 4.50 1.13 1.25 3.50
610509 1 1/8" 18.00 6.00 1.25 1.38 3.75
610510 1 1/4" 21.00 8.00 1.38 1.50 4.25
610511 1 3/8" 26.00 10.00 1.50 1.63 5.00
610512 1 1/2" 31.00 15.00 1.63 1.75 5.50
610514 1 3/4" 41.00 21.00 2.00 2.25 6.00



106 Straight Side / Bolt Type Shackle

With nut and molly hole

PART NO. SIZE
(S)		 WLL
(TONS)		 WEIGHT (LBS) P J R
610604 1/2" 4.00 1.2 0.63 0.75 2.25
610605 5/8" 6.00 2.0 0.75 0.88 2.50
610606 3/4" 9.00 2.5 0.88 1.00 2.75
610607 7/8" 12.00 2.5 1.00 1 1/ 3.00
610608 1" 16.00 4.5 1.13 1.25 3.50
610609 1 1/8" 18.00 6.0 1.25 1.38 3.75
610610 1 1/4" 21.00 8.0 1.38 1.50 4.50
610611 1 3/8" 26.00 10 1.50 1.63 5.00
610612 1 1/2" 31.00 15 1.63 1.75 5.50
610613 1 5/8" 41.00 21 2.00 2.25 6.00
610614 1 3/4" 52.00 30 2.25 2.50 6.50



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description:
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications.
  • NOT FOR OVERHEAD LIFTING.





108 Hanging Shackle

Bale has a deep spread with a wide bell. Pin is secured with a jam nut and molly hole.

PART NO. SIZE
(S)		 WLL
(TONS)		 P J B R WEIGHT
610805 5/8" 6.00 0.75 0.88 2.00 3.00 3.50
610806 3/4" 9.00 0.88 1.00 2.38 3.50 4.00
610807 7/8" 12.00 1.00 1.13 2.63 4.00 4.50
610808 1" 16.00 1.13 1.25 3.00 5.00 6.00
610809 1 1/8" 18.00 1.25 1.38 3.25 5.50 7.50
610810 1 1/4" 21.00 1.38 1.50 3.75 6.00 10.00
610811 1 3/8" 26.00 1.50 1.63 4.00 6.50 15.00
610812 1 1/2" 31.00 1.63 1.75 4.25 7.00 17.00
610813 1 5/8" 35.00 1.75 1.88 4.63 7.50 21.00
610814 1 3/4" 41.00 2.00 2.25 5.00 8.00 28.00
610816 2" 52.00 2.25 2.50 5.50 8.50 37.00



109 Knock Out Pin Shackle

Complete with #108 Shackle bale

PART NO. SIZE
(S)		 WLL
(TONS)		 P J B R WEIGHT
610906 3/4" 9.00 0.88 1.00 2.38 3.50 3.50
610907 7/8" 12.00 1.00 1.13 2.63 4.00 4.00
610908 1" 16.00 1.13 1.25 3.00 5.00 6.00
610909 1 1/8" 18.00 1.25 1.38 3.25 5.50 7.50
610910 1 1/4" 21.00 1.38 1.50 3.75 6.00 10.00
610911 1 3/8" 26.00 1.50 1.63 4.00 6.50 15.00
610912 1 1/2" 31.00 1.63 1.75 4.25 7.00 17.00
610913 1 5/8" 35.00 1.75 1.88 4.63 7.50 21.00
610914 1 3/4" 41.00 2.00 2.25 5.00 8.00 28.00
610916 2" 52.00 2.25 2.50 5.50 8.50 37.00



109 Knock Out Pin

Pin Only

PART NO. DIAMETER WEIGHT
109006 7/8" 1.10
109007 1" 1.60
109008 1 1/8" 2.10
109009 1 1/4" 3.00
109010 1 3/8" 4.40
109011 1 1/2" 5.00
109012 1 5/8" 5.70
109013 1 3/4" 7.00



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description:
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING





110 Flush Pin Shackle

Pin threads into the shackle, hole will accommodate a 1/2” drive

PART NO. SIZE
(S)		 WLL
(TONS)		 P J R WEIGHT
611005 5/8" 6.00 0.75 1.00 2.25 1.50
611006 3/4" 9.00 0.88 1.00 1.88 2.00
611007 7/8" 12.00 1.00 1.13 2.00 2.50
611008 1" 16.00 1.13 1.25 2.25 4.10
611009 1 1/8" 18.00 1.25 1.38 2.75 5.00
611010 1 1/4" 21.00 1.38 1.50 3.25 7.00
611011 1 3/8" 26.00 1.50 1.63 4.00 10.00
611012 1 1/2" 31.00 1.63 1.75 4.25 11.00
611013 1 5/8" 32.00 1.75 1.88 4.63 14.00
611014 1 3/4" 41.00 2.00 2.25 5.00 17.00
611016 2" 52.00 2.25 2.5 6.00 28.00



110S Flat Bottom / Flush Pin Shackle

Shackle Complete

PART NO. SIZE
(S)		 WLL
(TONS)		 P J R WEIGHT FLUSH PIN ROLLER #
611056 3/4" 9.00 0.88 1.13 2.75 3.00 110106
611057 7/8" 12.00 1.00 1.25 2.75 4.00 110107
611058 1" 6.00 1.125 1.25 3.25 4.30 110108
Flush Pin Roller available on request



112 Arch Hook Shackle

Complete Shackle has a slight bell in the bale.

PART NO. SIZE
(S)		 WLL
(TONS)		 P J B R WEIGHT
611206 3/4" 9.00 0.88 1.00 1.13 1.88 2.00
611208 1" 16.00 1.13 1.25 1.38 2.25 4.50
611209 1 1/8" 18.00 1.25 1.38 1.50 2.38 6.00
611210 1 1/4" 21.00 1.38 1.50 1.63 2.75 8.00
611211 1 3/8" 26.00 1.50 1.63 1.75 3.00 12.00





174 Butt Rigging Shackle

Shackle Complete with pin

PART NO. SIZE
(S)		 P J R WLL
(TONS)		 WEIGHT
617406 3/4" 0.88 0.94 2.50 9.00 3.00
617407 7/8" 1.00 1.00 2.75 12.00 4.80
617408 1" 1.13 1.19 3.07 16.00 5.80
617409 1 1/8" 1.25 1.38 3.75 18.00 8.30
617410 1 1/4" 1.38 1.50 4.00 21.00 10.00
617411 1 3/8" 1.50 1.69 4.25 26.00 15.00
617412 1 1/2" 1.63 1.81 4.50 31.00 19.00
617413 1 5/8" 1.75 1.94 5.00 35.00 21.00
617414 1 3/4" 1.88 2.13 5.50 41.00 23.00



118i Intergal Swivel Buzzard Hook

PART NO. SIZE WEIGHT
611811i 1 3/8" 12.00
611812i 1 1/2" 15.00
611814i 1 3/4" 17.00
Latch repair kit part #611711K



117 Buzzard Hook

PART NO. LINE SIZE SIZE WEIGHT
611711 1/2 1 3/8" 11.00
611712 5/8 1 1/2" 12.00
611714 3/4 1 3/4 14.00
611716 7/8 2" 18.00
611718 1.00 2 1/4" 22.00
611720 1 1/8 2 1/2" 30.00
Latch repair kit part #611711K



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING





113 Cross Eye / (Reverse Eye)

T-Point Arch Hook

PART NO. SIZE LINE SIZE SHACKLE SIZE WEIGHT
611310TP 1 1/4" 1/2 3/4 5.00
611312TP 1 1/2" 3/4 1 6.00
611313TP 1 5/8" 3/4 1 7.00TP
611314TP 1 3/4" 7/8 1 1/8 9.00
611315TP 1 7/8" 7/8 1 1/4 12.00
611316TP 2" 1 1 1/4 15.00
611317TP 2 1/8" 1 1 3/8 18.00
611318TP 2 1/4" 1 1/8 1 3/8 20.00
611320TP 2 1/2" 1 1/4 1 3/8 25.00



114 Straight Eye / (Regular Eye)

Arrow Point Arch Hook

PART NO. SIZE LINE SIZE SHACKLE SIZE WEIGHT
611410PP 1 1/4" 1/2 3/4 5.50
611412PP 1 1/2" 3/4 1 7.00
611414PP 1 3/4" 7/8 1 1/8 10.00
611416PP 2" 1.00 1 1/4 16.00
611418PP 2 1/4" 1 1/8 1 3/8 22.00
611420PP 2 1/2" 1 1/4 1 3/8 27.00



115 Line Hook (Cross Eye)

PART NO. SIZE LINE SIZE HOLE SIZE JAW OPENING WEIGHT
611506CE 3/4" 0.25 0.50 0.88 0.80
611507CE 7/8" 0.38 0.63 1.00 1.00
611508CE 1" 0.38 0.75 1.13 1.00
611509CE 1 1/8" 0.44 0.88 1.25 2.50
611510CE 1 1/4" 0.50 1.00 1.38 4.00
611511CE 1 3/8" 0.56 1.13 1.50 5.00
611512CE 1 1/2" 0.63 1.13 1.63 6.00
611514CE 1 3/4" 0.75 1.13 1.75 8.50



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING





115 Line Hook (Straight Eye)

PART NO. SIZE LINE SIZE HOLE SIZE JAW OPENING WEIGHT
611506SE 3/4" 0.25 0.50 0.88 0.80
611507SE 7/8" 0.38 0.63 1.00 1.00
611508SE 1" 0.38 0.75 1.13 1.00
611509SE 1 1/8" 0.44 0.88 1.25 2.50
611510SE 1 1/4" 0.50 1.00 1.38 4.00
611511SE 1 3/8" 0.56 1.13 1.50 5.00
611512SE 1 1/2" 0.63 1.13 1.63 6.00
611514SE 1 3/4" 0.75 1.13 1.75 8.50



116 Flat Choker Hook

Order by Line Size. Intended for regular wire rope, not swaged wire rope.

PART NO. LINE SIZE SIZE HOLE SIZE WEIGHT
611603 3/8" 1/2 x 1 1/2 0.63 0.80
611604 1/2" 5/8 x 2 0.69 1.00
611605 5/8" 3/4 x 2 0.75 2.00
611606 3/4" 7/8 x 2 1/2 0.88 3.00
611607 7/8" 1 x 3 1.00 5.00
611608 1" 1 1/8 x 3 1/2 1.13 7.00
611609 1 1/8" 1 1/4 x 4 1.25 10.00
611610 1 1/4" 1 1/2 x 5 1.50 15.00



125 Skidding Tongs

PART NO. SIZE SPREAD WEIGHT
612507 7/8" 14" 14.00
612508 1" 16" 16.00
612509 1 1/8" 20" 20.00
612510 1 1/4" 24" 24.00
612512 1 1/2" 28" 28.00
612514 1 3/4" 32" 32.00



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING








126 Guyline Sleeve With Bolt & Nut

Includes #102 safety pin

PART NO. SIZE WEIGHT
612607 7/8" 8.00
612608 1" 11.00
612609 1 1/8" 15.00
612610 1 1/4" 18.00
612611 1 3/8" 25.00
612612 1 1/2" 27.00
612613 1 5/8" 33.00
612614 1 3/4" 38.00



128 Splicing Hammer

PART NO. SIZE/TYPE
612803 3# Without Handle
612813 3# With Handle
612804 4# Without Handle
612814 4# With Handle



146 Sledge Hammer

PART NO. SIZE/TYPE
614606 6# Without Handle
614607 6# With Handle
614608 8# Without Handle
614609 8# With Handle
614610 10# Without Handle
614611 10# With Handle
614612 12# Without Handle
614613 12# With Handle



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING








137 Strawline Swivel

PART NO. SIZE WEIGHT
613775 3/8" - 7/16" 0.80



131 Strawline Hook

PART NO. LINE SIZE
613104 1/4"
613105 5/16"
613106 3/8"
613107 7/16"
613108 1/2"



151 Trailer Loading Hook

With 1in #108 Shackle

PART NO. TON SIZE

WEIGHT* (LBS)
615112 8 Ton 1 1/2" 19.00
615114 11 Ton 1 3/4" 24.00
  • *Design factor is 4 to 1.



154 Dropline Socket

PART NO. TON HOOK PIN DIAMETER
154066 5/8" - 3/4" 1.38 .88
154067 3/4" - 7/8" 1.50 1.00
154068 7/8" - 1" 1.75 1.13



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING





152 Splitting Froe

PART NO. SIZE WEIGHT
615218 18" Froe With Handle 8.00



158 Aluminum Head Froe Hammer

PART NO. WEIGHT PRICE
615810 10.00 204.29



120 Alloy Rings

PART NO. SIZE ID WLL
(TONS)		 WEIGHT
612004 1/2" x 2 3/4" 1.25 0.80
612005 5/8" x 3" 2.00 1.00
612006 3/4" x 3 1/2" 3.50 1.80
612007 7/8" x 3 3/4" 5.00 2.50
612008A 1" x 4" 6.00 3.50
612008B 1" x 4 1/2" 6.00 3.80
612009 *1 1/8" x 4 3/4" 6.50 5.30
612010 *1 1/4" x 5" 7.00 7.00
* Welded



Marlin Spikes

PART NO. LENGTH LENGTH
650106 6" 18"
650108 8" 20"
650110 10" 24"
650112 12" 30"
650114 14" 36"
650116 16" 42"



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING





“Clark” Swivels

Use With Ulven #114 Hook

PART NO. SIZE LINE SIZE HOOK
501207 C-7 3/4" 1 3/4"
501209 C-9 7/8" 2"



Double Ender Hooks

PART NO. SIZE LINE SIZE
501010 Bantam 5/8 x 3/4
501000 Junior 7/8 x 1 3/4
501020 Standard 1 x 1 1/2



#31 SKM RR Car Hook

PART # WLL
(TONS)		 A B C D E F G LINE SIZE WEIGHT
312069 25.00 1.50 12.25 3.00 7.75 1.81 2.56 3.13 1.50 23.50
312068 20.00 1.38 12.00 3.00 7.75 1.69 2.56 3.50 1.38 20.00

Drawbar Protector Arcs

SIZE STOCK NO. WEIGHT
1/2" DB1960 17.00
9/16" DB1970 18.00
5/8" DB1980 20.00
3/4" DB1990 27.00
7/8" DB2000 38.00
1" DB2010 45.00
1-1/8" DB2020 50.00



Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING





Car Wheel Hooks

TYPE STOCK NO. WLL*
(TONS)		 WEIGHT
Standard CWH2360 3.10 17.00
Heavy CWH2390 4.10 24.00
Ex Heavy CWH2400 8.00 27
* 5:1 Design Factor when used in pairs



Car Puller Hooks

TYPE STOCK NO. WLL*
(TONS)		 WEIGHT
#7 CPH2030 7.50 18.00
#8 CPH2040 12.50 22.00
* 5:1 Design Factor



Manhole Pins

PART NO. STOCK NO. WLL*
(TONS)
MH-3550 1/4 2.30
MH-3555 1 1/2 3.80
MH-3560 1 7/8 5.00
* WLL and 5:1 Design Factor require pins to be used in pairs

Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description
  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications
  • NOT FOR OVERHEAD LIFTING



MAINTENANCE & WARNINGS

MAINTENANCE, INSPECTION AND WORKING LOAD CRITERIA FOR SKOOKUM GROUP OF HOISTING BLOCKS, FAIRLEADS, SHEAVES, AND FORGINGS. LUBRICATION AND SCHEDULES:

Before leaving our manufacturing facilities all parts that require grease are lubricated with multipurpose, polyurea petroleum based grease of medium consistency. This does not relieve the end user of their responsibility of periodic lubrication. The following is a general lubrication schedule. The frequency of inspection and lubrication should be based on the frequency of use, harshness of environment, climatic conditions, and the user’s own maintenance and lubrication schedules.


SHEAVES AND ROLLER LUBRICATION:

Bronze Bushings:
(Non self-lubricating type) every 8 hours of normal continuous operation, twice a month for normal intermittent use, or monthly if seldom used.
(Self-lubricating type) this type of bushing should never be greased. A light oil reservoir system is recommended under severe conditions.

  • Roller/Ball Bearings - Every 24 hours of normal continuous operation, twice a month for normal intermittent use, or monthly if seldom used.
  • Tapered Roller Bearings - Every 40-48 hours of normal continuous operation, or once a month for intermittent use.

Thrust Bearings and Thrust Washer Lubrication:
  • Thrust Bearings - Twice a month for frequent normal swiveling or every 3 weeks for intermittent normal swiveling and/or straight static loading.
  • Bronze/Brass Thrust Washers - Once a day for frequent normal swiveling or every 3 weeks for intermittently normal swiveling and/or straight loading.

STORAGE CONDITIONS:

If parts have been stored outside without adequate cover, bearings (particularly Roller, Ball, or Tapered Bearings) should be checked monthly and lubricated to reduce the risk of corrosion between matching metal parts. Before initial startup of stored equipment, it is highly recommended that parts be cleaned and lubricated prior to use, regardless of the last scheduled lubrication period.


WORKING LOAD LIMITS:

All ratings shown in Skookum literature are based upon the item being new or in “as new” condition.

Catalog ratings are considered to be the greatest load that should be applied to the item. Therefore, abnormal loading must be taken into consideration when selecting the item for use in any system. Continuous rapid shock, or surge loading, i.e. high cycle loading will rapidly reduce the Working Load and the life of the product. These conditions require more frequent inspection and testing, including additional N.D.E. (Non-destructive testing/examination).

Catalog ratings are based upon typical environmental conditions. Consideration must be given to item selection when unusual conditions are to be encountered. All ratings are in U.S. short tons of 2,000 lb per Ton.

The products shown are to be used in a tension or straight pull manner. Caution must be used to prevent the product from being subjected to side loading conditions that would cause additional and/or unintended loading.

All hook latches are intended to retain loose slings or devices under slack conditions. They are not intended to be antifouling devices. Caution should be to prevent the latch from supporting any part of the load. Periodic inspection of latches must be made to insure a proper operating condition.

Grinding, welding, and/or weld repair of any of our products without written consent by our company voids all warranty, whether written or expressed. It is recommended that you contact our engineering department for consultation before attempting any type of repair by welding or grinding.

Line sizes expressed in our catalog refer to regular 6 x 19 construction wire rope, not swaged rope.


INSPECTION AND WEAR:

Wear, misuse, overloading, deformation, intentional alteration, and other usage factors may necessitate a reduction in the product’s working load rating, or a reduction in its design factor rating. It is recommended that all products be inspected on a regular basis to determine their serviceability. It is necessary to clean and inspect all items on a regular basis and keep accurate records of the inspection. The minimum industry standard is daily visual inspection and a monthly written and recorded inspection. Things to look for and inspections to perform include (but are not limited to) the following:

  • Marks, nicks, gouges, scuffing, and cracks.
  • Wear, especially excessive wear at load bearing points and threaded parts.
  • Twists or bends in forged shackles and hooks.
  • Unauthorized grinding, welding, cutting, or high heating conditions.
  • Opening or stretching of hooks, shackles and links.
  • Loose or worn retaining latches on hooks.
  • Loose nuts, pins, or missing cotter/clip pins.
  • Mushroomed contact points on shackles, hooks, and striking faces on hammers and splitting devices.
  • N.D.E. Inspection as warranted (non-destructive testing examination such as Magnetic Particle, Die Penetrant, Ultrasonic, and/or X-Ray).

Any item showing evidence of, or failing any of the above inspections should be immediately removed from service. Items may be returned to Skookum (freight prepaid) for professional inspection for a minimum charge. If the item cannot be reworked or repaired, or is in an unsafe condition, we will notify the customer immediately and make arrangements for the disposal of the item.

TYPES OF LOADS:

Knowing the correct terminology of the load ratings helps in specifying the correct item for your application. The following load definitions are the ones most commonly used in our industry:

Working Load or Working Load Limit
The maximum recommended load that should be applied on the item. The terms Working Load (WL) and Working Load Limit (WLL) refer to straight in-line pull with respect to the centerline of the item unless otherwise noted.

PROOF LOAD
The average load to which an item may be subjected to before visual or permanent deformation occurs. It also refers to a testing procedure where a load is applied in the performance of a proof test.

ULTIMATE LOAD
The weighted average load at which the item being tested fails or will no longer supports the load.

SHOCK LOAD
Is a resulting load caused by the rapid change of movement such as impacting or jerking of a static load. A shock load is typically significantly greater than the static load. In some cases it will double the static load instantaneously and should be avoided as both a potential hazard to equipment operators and to the equipment itself.


DESIGN FACTOR:

This is an Industry term denoting theoretical reserve capability. This is usually expressed as a ratio such as 4 to 1 or 5 to 1 (4:1 or 5:1). It is normally determined by dividing the rated ultimate strength by the stated working load limit (WLL). It may also be based as a weighted average (as per the ultimate load definition above), or as a minimum factor. In which case the ultimate tested load meets or exceeds the stated design factor.

Terms to be avoided or not to be used at all:
Safe Working Load or Resultant Safe Working Load are not accepted terminology and do not denote specific product capabilities. Working Load or Working Load Limit are the proper descriptors.

Safety Factor is not an accepted terminology. Design Factor is the proper descriptor.


IMPORTANT NOTE REGARDING FORESTRY PRODUCT RATINGS:

Skookum Forest products are designed to be used with and tested with Wire Rope conforming to the following description:

  • New 6 x 19 or 6 x 37 Class, EIP, IWRC, Right Regular Lay Wire Rope made to US specifications.
  • Used for Logging / Skidding or Pulling Applications.
  • NOT FOR OVERHEAD LIFTING.

SKOOKUM SHACKLES, RIGGING, AND BLOCKS

This guide covers the application and maintenance for the Skookum, B.C.M., RopeMaster, and Ulven Brand Shackles and Rigging. It also includes the Skookum and Ulven Brand Blocks and Rigging products.


SKOOKUM SHACKLES:

Skookum Shackles are Forged Alloy Steel, and meet or exceed the criteria of ASME B30.26, Chapter 26-1, and/or the Federal Specification RR-C-271.


DESIGN FACTOR:

The Design Factor on standard catalog Skookum Shackles are based on a minimum of 5 to 1 (5:1). The Design Factor (ultimate capacity) is arrived at under ideal and controlled conditions and should never be used as a basis for reverse design engineering.


WORKING LOAD (RATED LOAD):

The working load or rated load is the maximum load that should be exerted on the item.


PROOF TESTING:

Proof testing is completed per customer request and/or at Skookum’s discretion. As a rule, poofing of Skookum shackles requires testing at twice the stated Working Load Limit (WLL), or as required by ASME B30.26, Chapter 26-1, or in accordance with the RR- C-271. In some cases, the standard Skookum proof test exceeds both of these specifications and Skookum should be consulted with any special proof test requirements.

Standard process on all RR-C-271 proof testing shall be single point loading. All other Proof Tests shall fill up to 80% of the jaw width to properly center the load on the pin. It is recommended that spacers or washers be used to center the load during normal operations so no accidental side loading occurs.

See Figure SL-001.1 for recommendations using Skookum Shackles with Slings.

See Figure SL-001.2 side loaded reduction table for pad eye configuration. In all cases the pad eye width should be at least 80% of the Jaw width.

For special testing purposes such as periodic Magnetic Particle Inspection after proof testing see below for maximum percentage allowances for removing tooling/forging marks/ and minor indications. If grinding exceeds these percentages parts should be removed from service and Skookum Engineering should be consulted.

The following are maximum percentages of removal allowed if grinding out minor linear indications found during MPI testing.

  1. 3% to 4% Off of Nominal Dimensions.
  2. 6% to 8% Off of Nominal Dimensions.
  3. 15% to 20% On Non-Load Areas.
FIGURE SL-001.2
Angled loads must be applied in the plane of the Shackle Bow.
Side loading reduction Chart for Screw Pin and Bolt Type Shackles Only
ANGLE ADJUSTED WORKING LOAD LIMIT
0° 100% of Working Load Limit
45° 50% of Working Load Limit
Up to 90° 70% of Working Load Limit
* In-Line Load is applied perpendicular to pin.
** Never side load Round Pin Shackles.
*** If angle exceeds 45° use a Bolt Type Shackle.
For Shackles larger than 117 Tons, where the angle is greater than 5°, contact Skookum Engineering.
FIGURE SL-001.1
Never exceed 120° Inclusive angle. Never use Round Pin Shackles.
Shackles symmetrically loaded with two legged slings having a maximum inclusive angle of 120° can be used to full rated Working Load Limit.
For Shackles larger than 117 Ton, the maximum angle is 90° for full working load limit. If inclusive angle is greater than 120 °, Contact Skookum Engineering.




METRIC/DECIMAL EQUIVALENTS




1/64 .015625 0.3969
1/32 .031250 0.7938
.039370 Ñ 1
3/64 .046875 1.1906
1/16 .062500 1.5875
5/64 .078125 1.9844
.078740 Ñ 2
3/32 .093750 2.3812
7/64 .109375 2.7781
.118110 Ñ 3
1/8 .125000 3.1750
9/64 .140625 3.5719
5/32 .156250 3.9688
.157480 Ñ 4
11/64 .171875 4.3656
3/16 .187500 4.7625
.196850 Ñ 5
13/64 .203125 5.1594
7/32 .218750 5.5562
15/64 .234375 5.9531
.236220 Ñ 6
1/4 .250000 6.3500
17/64 .265625 6.7469
.275591 Ñ 7
9/32 .281250 7.1438
19/64 .296875 7.5406
5/16 .312500 7.9375
.314961 Ñ 8
21/64 .328125 8.3344
11/32 .343750 8.7312
.354331 Ñ 9
23/64 .359375 9.1281
3/8 .375000 9.5250
25/64 .390625 9.9219
.393701 Ñ 10
13/32 .406250 10.3188
27/64 .421875 10.7156
.433071 Ñ 11
7/16 .437500 11.1125
29/64 .406250 11.5094
15/32 .468750 11.9062
.472441 Ñ 12
31/64 .484375 12.3031
1/2 .500000 12.7000
.511811 Ñ 13
33/64 .515625 13.0969
17/32 .531250 13.4938
35/64 .546875 13.8906
.551181 Ñ 14
9/16 .562500 14.2875
37/64 .578125 14.6844
.590551 Ñ 15
19/32 .593750 15.0812
39/64 .609375 15.4781
5/8 .629921 15.8750
.625000 Ñ 16
41/64 .640625 16.2719
21/32 .656250 16.6688
.669291 Ñ 17
43/64 .671875 17.0656
11/16 .687500 17.4625
45/64 .703125 17.8594
.708661 Ñ 18
23/32 .718750 18.2562
47/64 .734375 18.6531
.748031 Ñ 19
3/4 .750000 19.0500
49/64 .765625 19.4469
25/32 .781250 19.8438
.787402 Ñ 20
13/16 .826775 20.6375
.812500 Ñ 21
53/64 .828125 21.0344
27/32 .843750 21.4312
55/64 .859375 21.8281
.866142 Ñ 22
7/8 .875000 22.2250
57/64 .890625 22.6219
.905512 Ñ 23
29/32 .906250 23.0188
59/64 .921875 23.4156
15/16 .944882 23.8125
.937500 Ñ 24
61/64 .953125 24.2094
31/32 .968750 24.6062
.984252 Ñ 25
63/64 .984375 25.0031
1 1.00000 25.4000



mm inches mm inches mm inches mm inches
25 0.98425 44 1.73228 63 2.48031 82 3.22834
26 1.02362 45 1.77165 64 2.51968 83 3.26771
27 1.06299 46 1.81102 65 2.55905 84 3.30708
28 1.10236 47 1.85039 66 2.59842 85 3.34645
29 1.14173 48 1.88976 67 2.63779 86 3.38582
30 1.18110 49 1.92913 68 2.67716 87 3.42519
31 1.22047 50 1.96850 69 2.71653 88 3.46456
32 1.25984 51 2.00787 70 2.75590 89 3.50393
33 1.29921 52 2.04724 71 2.79527 90 3.54330
34 1.33858 53 2.08661 72 2.83464 91 3.58267
35 1.37795 54 2.12598 73 2.87401 92 3.62204
36 1.41732 55 2.16535 74 2.91338 93 3.66141
37 1.45669 56 2.20472 75 2.95275 94 3.70078
38 1.49606 57 2.24409 76 2.99212 95 3.74015
39 1.53543 58 2.28346 77 3.03149 96 3.77952
40 1.57480 59 2.32283 78 3.07086 97 3.81889
41 1.61417 60 2.36220 79 3.11023 98 3.85826
42 1.65354 61 2.40157 80 3.14960 99 3.89763
43 1.69291 62 2.44094 81 3.18897 100 3.93700

1 Inch = 25.400 mm





WARRANTY

Conditions of Sale & Limited Warranty - Notice to customers. Please read carefully:


These terms and conditions contain disclaimers of warranties and strict limitation of liability and remedies.


Manufacturer warrants to the original wholesaler or OEM purchaser and/or to the original retail purchaser only that the goods, equipment or merchandise described herein will be free from defects in material and workmanship for a period of twelve (12) months from date of manufacturers shipment. Should the goods, equipment or merchandise prove defective within twelve (12) month period. Skookum will, at its option, repair or replace the same when returned to its plant, charges prepaid. lf Skookum is given written notice of any such claimed defect promptly and is submitted, freight prepaid, within such twelve (12) month period for examination. Repair and/or replacement at the option of Skookum shall be the sole and exclusive remedy of the buyer for breach of the above express warranty.


Except as expressly set forth herein, Skookum makes no warranty either express or implied, that the goods, equipment, or merchandise shall be merchantable or if for any particular purpose or use, nor does it make any other warranty, express, or implied statutory. Skookum shall have no liability for incident consequential, special, general or other damages arising from the use of its product including, but not limited to: failure of the goods, equipment, or merchandise to perform any general or particular function or purpose whether such damage or failure is due to mistake or deficiency in any design, formula, plan specification, advertising material, printed instructions, defective materials, defective or improper assembly or otherwise; the sole liability of Skookum being to repair or replace, at its option, defects in material or workmanship as stated in the preceding paragraph. Skookum shall not have any responsibility or liability for damage in shipment, during assembly, installation. erection, or that arising from accidents, abuse or improper operation of the goods, equipment or merchandise.


These terms and conditions shall supersede and, in case of conflict, shall have control over any other terms or provisions in any oral or written purchase order or other document pertaining to the goods, equipment or merchandise described herein, including any negotiations between parties or as suggested by any product catalog or descriptive literature. Nor does any distributor, dealer. franchisee, independent sales representative or other person, firm or corporation have authority to assume any other obligations or liability on behalf of Skookum, or to waive. modify or change these terms and conditions. We agree, in performing the work required by any purchase order, not to discriminate against any worker because of race, creed, color, sex or national origin.


Iln the event of stoppage or partial stoppage of our plants or shipments of the items ordered by the customer due to causes beyond our control (such as, but not limited to: strikes, differences with workmen, fires. floods, accidents, scarcity of labor. materials, power, fuel or transportation, difficulties, war-whether in this country or abroad, government regulations, orders or proclamations, laws, acts of public enemies, mobs or rioters, or acts of God) deliveries hereunder may be suspended or partially suspended, during the continuance of such interruption.


Warranty Disclaimer: The Warranty, whether expressed or implied, shall be void if parts are altered or repaired by other than Skookum, or by their approved agent. Approval shall be in writing and required before alterations or repairs are done.


By acceptance of our sales order acknowledgment copy you accept all the terms and provisions heretofore set forth and agree that the delivery of the merchandise described in said order shall be subject to no other terms and conditions whatsoever unless additional terms are made the subject of negotiation and are covered by separate written acceptance by us.


Receipt of acknowledgment by you without written objection to us within thirty days from the date of receipt of the merchandise de- scribed in said order shall constitute an acceptance by you of the terms hereof and an agreement that the delivery of the merchandise described in said order is subject to no other terms than those stated in this acceptance.


The provisions of the instrument shall be construed in accordance with, and the rights and liabilities of both the manufacturer and purchaser shall be controlled by the laws of the state of Oregon, USA, in force as of the date of shipment by the manufacturer.


TERMS - Miscellaneous

Prices and discounts are subject to change without notice. Orders accepted with the understanding that price and discounts prevailing at the time of shipment shall apply.


Drop Ship Fees - $25.00 on orders up to $500.00, $50.00 on orders from $501.00 to $2000.00, and $100.00 on orders from $2001.00 and up. Will also include Will Call for end-users picking up on behalf of the Skookum dealer.


Shipment discrepancies must be documented. Notification of discrepancies in quantities of items shipped must be made within 15 days of receipt of shipment.


Material may not be returned without prior written permission. Requests to return material should include Skookum`s original invoice number.


Any items not cataloged or items not shipped within the preceding 90 days are non-returnable. Items to be returned must be in new and unused condition.


Non-cataloged items or special engineered products canceled will be subject to a cancellation charge equal to the greater of the cost of labor and material incurred by the company and no less than 25% of net order value.


For standard items returned, a minimum restocking charge the greater of 25% or $50 shall be made, with additional charges as required for repairing items not received in good condition.


Returned items must be freight prepaid, and all transportation costs previously assumed by Skookum will be charged back.



All items are FOB Hubbard, OR, unless otherwise noted.


* Freight allowances given shall not shift FOB point so as to risk loss or damage.
** Specialty items are FOB Hubbard, unless otherwise noted.


WARNING:Misuse of rigging equipment can result in serious injury up to and including loss of life. Only competent trained professionals should use Skookum products. Thoroughly inspect all equipment before each and every use and never use damaged or worn products. Skookum disclaims any liability resulting from the misuse of its products. Please take a moment to carefully review our maintenance and warnings page for more information

www.SkookumTough.com
VIEW LIST

Pick list

How to Create an RFQ?
  • Add items to your picklist by clicking on the plus sign of the model or part number you select.
  • Fill in the quantity requested. If special requests or customization are needed include these notes in the space provided.
  • After adding the details select the ADD TO PICKLIST button and continue. You can add as many items as desired.
  • To complete the RFQ click on the VIEW LIST button on the top right side of the page. Verify your list and edit any items you have added. If you want to add more, click the BACK TO CATALOG button.
  • Add your contact details and click on the Submit for quote button. Skookum Sales will contact you directly with the requested information.
